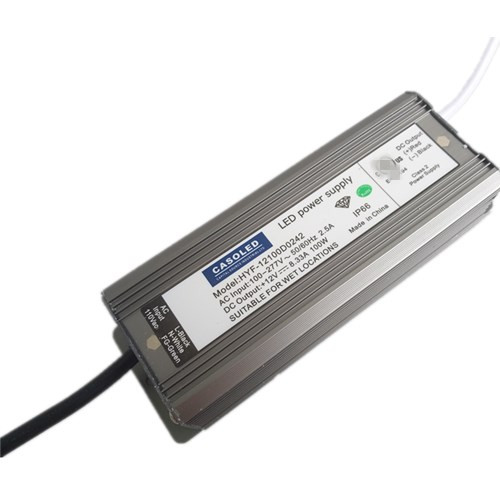

100W Power Supply: 12/24Vdc

Model No.︰ HYF-12100D0242
Brand Name︰ CASOLED
Certificate:CE /ROHS
Minimum Order︰ 50 pc
warranty:3 years
Availability:
Quantity:
  • HYF-12100D0242

  • CASOLED

  • 8504401400

100W Waterproof  Power   Suppply

Functional  Parameters

Power

Model

Efficiency

PF

Value

Series

Input

Voltage

Output

Voltage

Output

Current

100W

HYF-12100D0242

86%

0.5

CE

100-277V

12V

8.34A

HYF-24100D0242

88%

0.5

CE

100-277V

24V

4.17A

HYF-36100D0242

89%

0.5

CE

100-277V

36V

2.78A

Features:

Universal: AC input
Driver:Constant Voltage
Protection: Short Circuit /Overload/Over voltage;IP66
Material of the  Shell: Aluminum alloy
Working Temperature: -20℃~60℃
Working Humidity:  10%~95%

Packaging

Weight/Pcs(g)

1050

Pcs/Case

10

Package  Size/Box

320×245×200

Cable

AC:  (Black),18AWG*3C,L=250mm(SJTW Wire)UL

DC:  (White),18AWG*2C,L=250mm(SJTW Wire)UL
