CAMZ-S43-1W-S0
CASOLED
9405409000

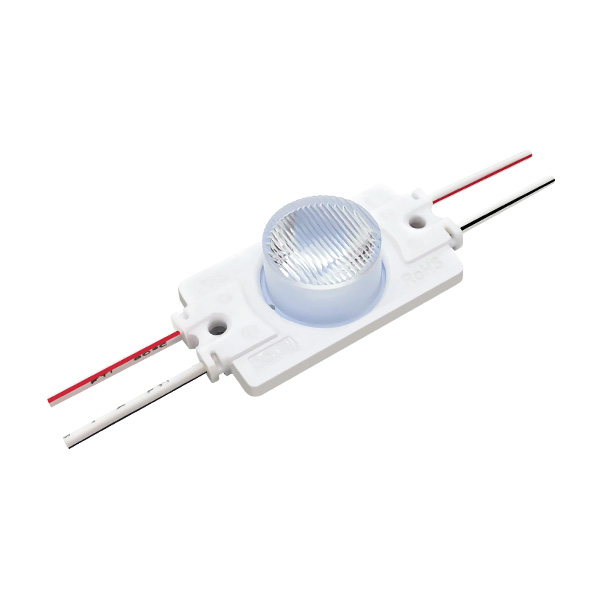

43*23 Side-lit LED Module
| Part No. | Color | Dimension | Input Voltage | Current | Power | Beam Angle | LED Qty | Lumens | IP Rate |
| CAMZ-S43-1W-S0 | White | 43*23*11.6mm | 12VDC | 120MA | 1.32W | 10°/65° | 1 | 125lm | IP65 |
Features:
● Sourced by high output SMD3030, good color conformity and no spot.
● 99.99% gold thread, pure copper bracket coated with silver.
● SDCM≤5 each BIN.
● Special lens design, 160°beaming angle with even light.
● Overmoulded: anti-dusting, anti-moisture, waterproof, anti-shock.
● 20 pcs Max. in a series connection.
● CE, ROHS certified.
Application
● Best for 15-30cm depth double-sided light box or 8-20 cm depth single-sided light box at airports, metros, banks, buildings and shopping malls, etc.
Connection
Package:
43*23 Side-lit LED Module
| Part No. | Color | Dimension | Input Voltage | Current | Power | Beam Angle | LED Qty | Lumens | IP Rate |
| CAMZ-S43-1W-S0 | White | 43*23*11.6mm | 12VDC | 120MA | 1.32W | 10°/65° | 1 | 125lm | IP65 |
Features:
● Sourced by high output SMD3030, good color conformity and no spot.
● 99.99% gold thread, pure copper bracket coated with silver.
● SDCM≤5 each BIN.
● Special lens design, 160°beaming angle with even light.
● Overmoulded: anti-dusting, anti-moisture, waterproof, anti-shock.
● 20 pcs Max. in a series connection.
● CE, ROHS certified.
Application
● Best for 15-30cm depth double-sided light box or 8-20 cm depth single-sided light box at airports, metros, banks, buildings and shopping malls, etc.
Connection
Package:
