CAMZ-S45-1W-S3
CASOLED
9405409000
45*32 Edge-lit LED Module
| Part No. | Color | Dimension | Input Voltage | Current | Power | Beam Angle | LED Qty | Lumens | IP Rate |
| CAMZ-S45-1W-S3 | White | 45*32*17.8mm | 12VDC | 120MA | 2.5W | 15°/45° | 1 | 250lm | IP65 |
Features
● Sourced by high output SMD3535, good color conformity and no spot.
● 99.99% gold thread, pure copper bracket coated with silver.
● SDCM≤5 each BIN.
● Special lens design, 15*45°beaming angle with even light.
● Overmoulded: anti-dusting, anti-moisture, waterproof, anti-shock.
● 20 pcs Max. in a series connection.
● CE, ROHS and certified.
Application
● Best for 15-30cm depth double-sided light box or 8-20 cm depth single-sided light box at airports, metros,banks, buildings and shopping malls, etc.
Beam Angle

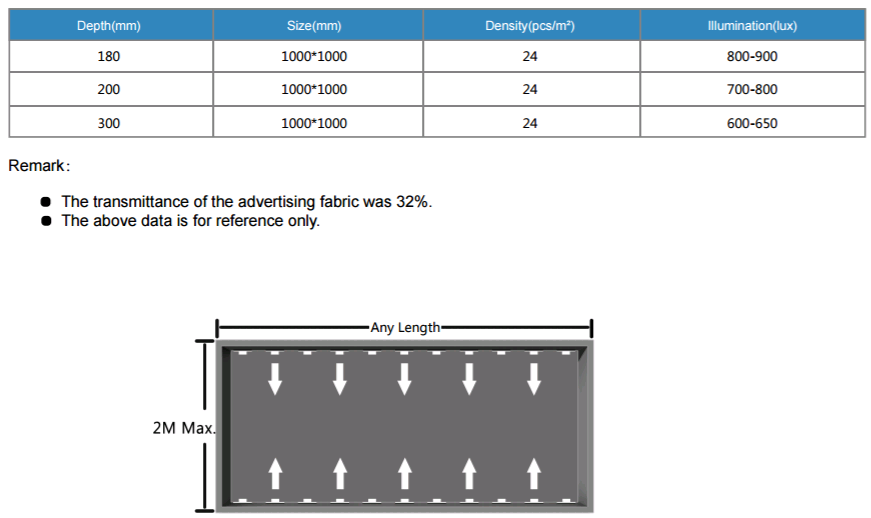

Reference

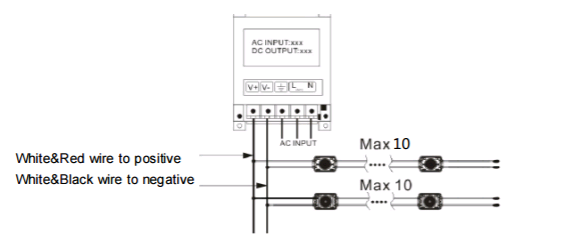

Connection

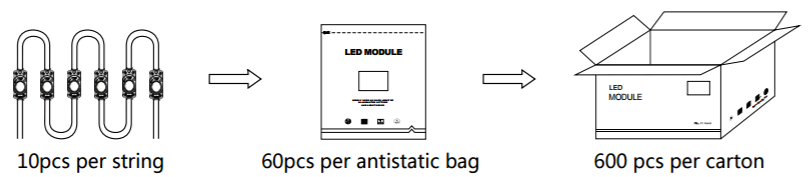

Package:
Weight/Carton | 14Kg/carton |
Quntity | 600pcs/carton |
Package Size/ Carton | 490×450×220mm |
