CA-HBLA-100W;CA-HBLA-160W;CA-HBLA-200W;CA-HBLA-240W;
CASOLED
94054090000
Part No. | CCT | Dimension | Input Voltage | CRI | Power | Beam Angle | LED Qty | Lumens | IP Rate |
CA-HBLA-100W | 2700~6500K | φ280*150mm | AC85~305V | ≥80 | 100W | 60°/90°120° | 133 | 140lm/W | IP65 |
CA-HBLA-160W | 2700~6500K | φ340*165mm | AC85~305V | ≥80 | 160W | 60°/90°120° | 210 | 140lm/W | IP65 |
CA-HBLA-200W | 2700~6500K | φ340*165mm | AC85~305V | ≥80 | 200W | 60°/90°120° | 315 | 140lm/W | IP65 |
CA-HBLA-240W | 2700~6500K | φ340*165mm | AC85~305V | ≥80 | 240W | 60°/90°120° | 315 | 140lm/W | IP65 |
IP65 Waterproof
From 100W to 240W
140lm/W High Lumen
Dimmable: PNG / 0~10V / Dali
Surge protection: 6 kv
Hot Selling,light weight with good heatsink
★ Product description
Newest design, smaller in volume and weight, longer-lasting and more efficient the new design is more compact without sacrificing performance.
Save electricity bill. Replace the old Metal Halide, HID or CFL bulbs with the new UFO High Bay LED light.

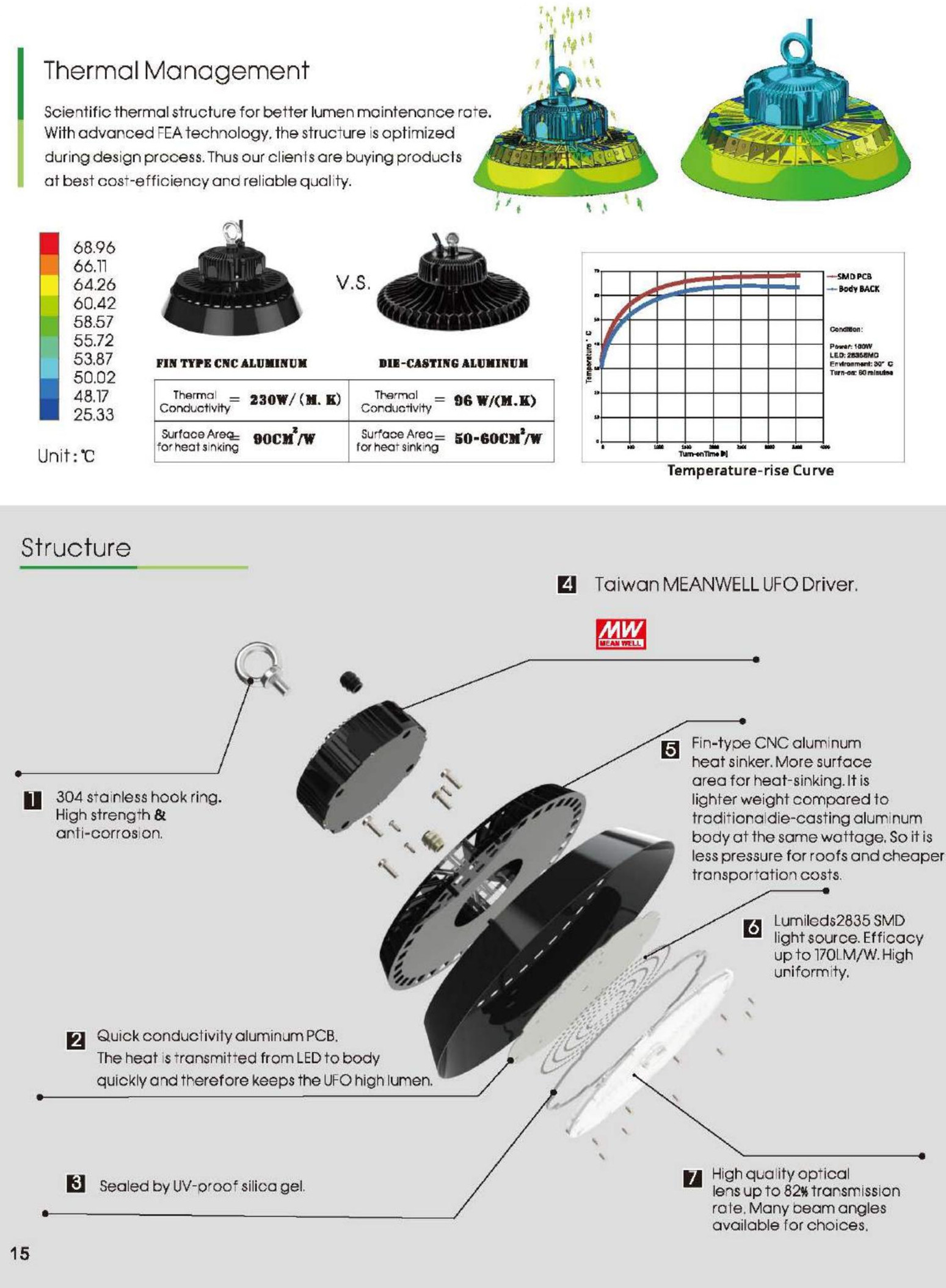

Unique heat sink and shell integration design allow great heat dissipation to reduce the temperature of the lamp body and ensure the LED 50000hrs lifespan.
High tech 3D heat flow channel design, more efficient and faster to heat dissipate.
Protect LED chips and driver power. Anti-corrosion anode oxidation processing for the surface of the housing, compact and beautiful structure, realize heat radiation and heat dissipation. And protect grade can reach IP20.
◢ Material: Aluminum
◢ Work Temperature: -20 to 40 degrees
◢ Average life: more than 50,000 hours
★ If any questions please feel free to contact us, we will help you to solve as soon as possible.
