CA-LKF-20W;CA-LKF-30W;CA-LKF-40W
CASOLED
All-in-one Solar LED Street Light
Specification:
Product Model | CA-LKF-20W | CA-LKF-30W | CA-LKF-40W |
Monocrystalline solar panel | 18V/40W | 18V/50W | 18V/65W |
Battery | Lithium LifePO4 3.2V 36AH | Lithium LifePO4 3.2V 76AH | Lithium LifePO4 3.2V 100AH |
LEDs Chips | Philips 5050 | ||
Material | Die-casting aluminum | ||
Luminous Efficiency | 200lm/w | ||
Controller | MPPT boost constant current integrated control | ||
Lighting Mode | Microwave induction+segmented time control+intelligent control | ||
Charge Time | Supporting 5-7 rainy days | ||
Discharge Time | Sunshine lasts for 6 hours | ||
Working Hours | >50,000 hours | ||
IP Grade | IP65 | ||
Warranty | 3 years | ||
Product Size | 760*430*150mm | 910*430*150mm | 1160*430*150mm |
Advantages
1.The STL range uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.
2.Professional outdoor lights IP67 waterproof and lighting protection.
3.Working Mode: Automatic turn on at dusk, turn off dawn. When motion is detected, it becomes brighter.If the movement leaves, it will turn back to dark mode again.In order to save electricity, at dusk, counting from begin lighting. 1-6H: motion mode 100% brightness, dark mode 20% brightness; After 6H : motion mode 70% brightness, dark mode 20% brightness;The daytime turns off automatically and starts charging.

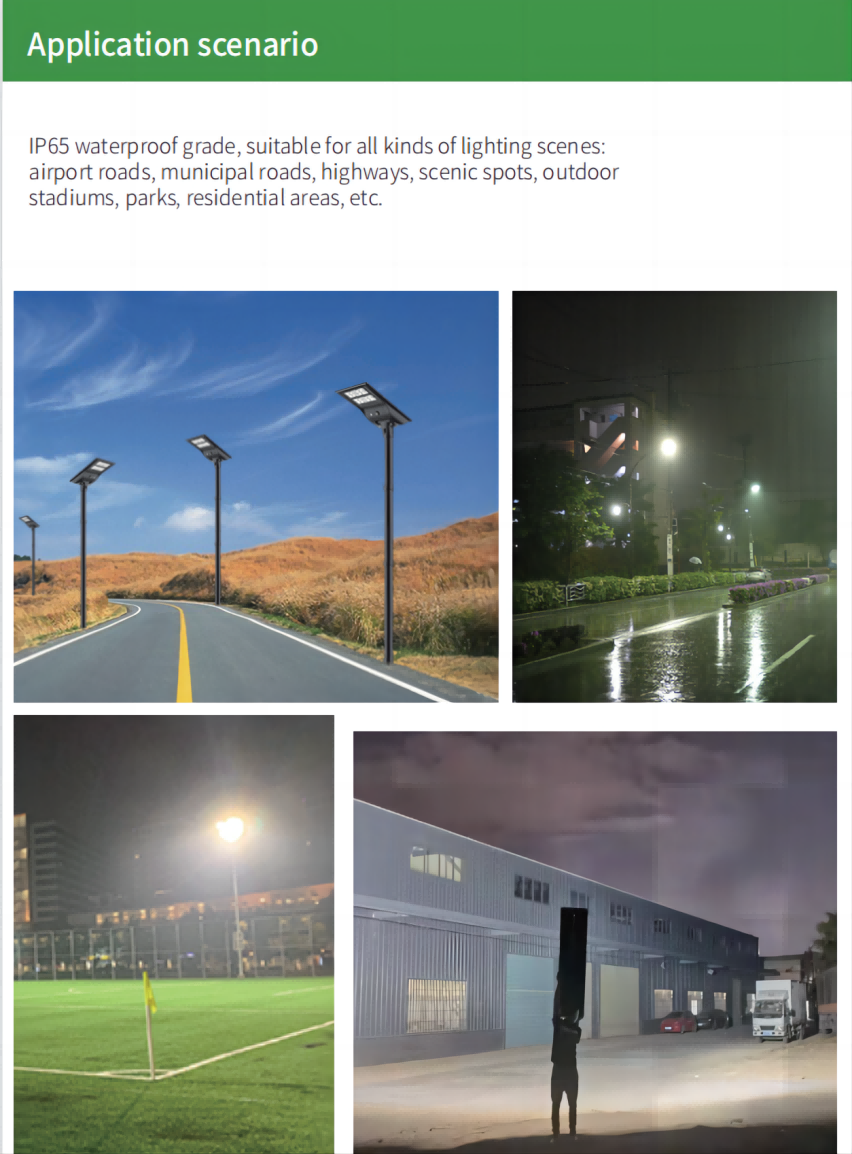

4.Applications: Coastal Areas, Jetties,Parking Lots,Perimiter Lighting,Security,Entrance Lighting,Signage,Billboard Lighting,Construction Sites,Rural,Remote Area Lighting,Mining & Industrial Sites
Led power: 20W( 4200LM), 30W(6600lm), 30W(8000lm)
Solar panel: Monocrystalline silicon
Battery: LifePO4 Lithium battery
Light efficiency: 200lm/w Philips smd 5050(Osram, Cree, Bridgelux both available)
Controller: MPPT controller. 98% charging efficiency.
IP grade: IP65 outdoor using
Working mode: Dusk to dawn + Time controll + motion sensor
Lifespan: 8-10 years.
Warranty: 3 years, if any faulty during warranty, we will replace you new ones.
Application: Countryside, road lighting, town road, village road, urban roads, sports fields.
Our Solar Street Light it is a good solution for lacking electricity, easy to install, free wiring.
You will get high quality Solar Street Light and stable supply. You will get more projects and clients by selling our products.
Characteristics:
3. Solar Street Lights newly detachable design, easy for installation and maintenance.
All-in-one Solar LED Street Light
Specification:
Product Model | CA-LKF-20W | CA-LKF-30W | CA-LKF-40W |
Monocrystalline solar panel | 18V/40W | 18V/50W | 18V/65W |
Battery | Lithium LifePO4 3.2V 36AH | Lithium LifePO4 3.2V 76AH | Lithium LifePO4 3.2V 100AH |
LEDs Chips | Philips 5050 | ||
Material | Die-casting aluminum | ||
Luminous Efficiency | 200lm/w | ||
Controller | MPPT boost constant current integrated control | ||
Lighting Mode | Microwave induction+segmented time control+intelligent control | ||
Charge Time | Supporting 5-7 rainy days | ||
Discharge Time | Sunshine lasts for 6 hours | ||
Working Hours | >50,000 hours | ||
IP Grade | IP65 | ||
Warranty | 3 years | ||
Product Size | 760*430*150mm | 910*430*150mm | 1160*430*150mm |
Advantages
1.The STL range uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.
2.Professional outdoor lights IP67 waterproof and lighting protection.
3.Working Mode: Automatic turn on at dusk, turn off dawn. When motion is detected, it becomes brighter.If the movement leaves, it will turn back to dark mode again.In order to save electricity, at dusk, counting from begin lighting. 1-6H: motion mode 100% brightness, dark mode 20% brightness; After 6H : motion mode 70% brightness, dark mode 20% brightness;The daytime turns off automatically and starts charging.
4.Applications: Coastal Areas, Jetties,Parking Lots,Perimiter Lighting,Security,Entrance Lighting,Signage,Billboard Lighting,Construction Sites,Rural,Remote Area Lighting,Mining & Industrial Sites
Led power: 20W( 4200LM), 30W(6600lm), 30W(8000lm)
Solar panel: Monocrystalline silicon
Battery: LifePO4 Lithium battery
Light efficiency: 200lm/w Philips smd 5050(Osram, Cree, Bridgelux both available)
Controller: MPPT controller. 98% charging efficiency.
IP grade: IP65 outdoor using
Working mode: Dusk to dawn + Time controll + motion sensor
Lifespan: 8-10 years.
Warranty: 3 years, if any faulty during warranty, we will replace you new ones.
Application: Countryside, road lighting, town road, village road, urban roads, sports fields.
Our Solar Street Light it is a good solution for lacking electricity, easy to install, free wiring.
You will get high quality Solar Street Light and stable supply. You will get more projects and clients by selling our products.
Characteristics:
3. Solar Street Lights newly detachable design, easy for installation and maintenance.
