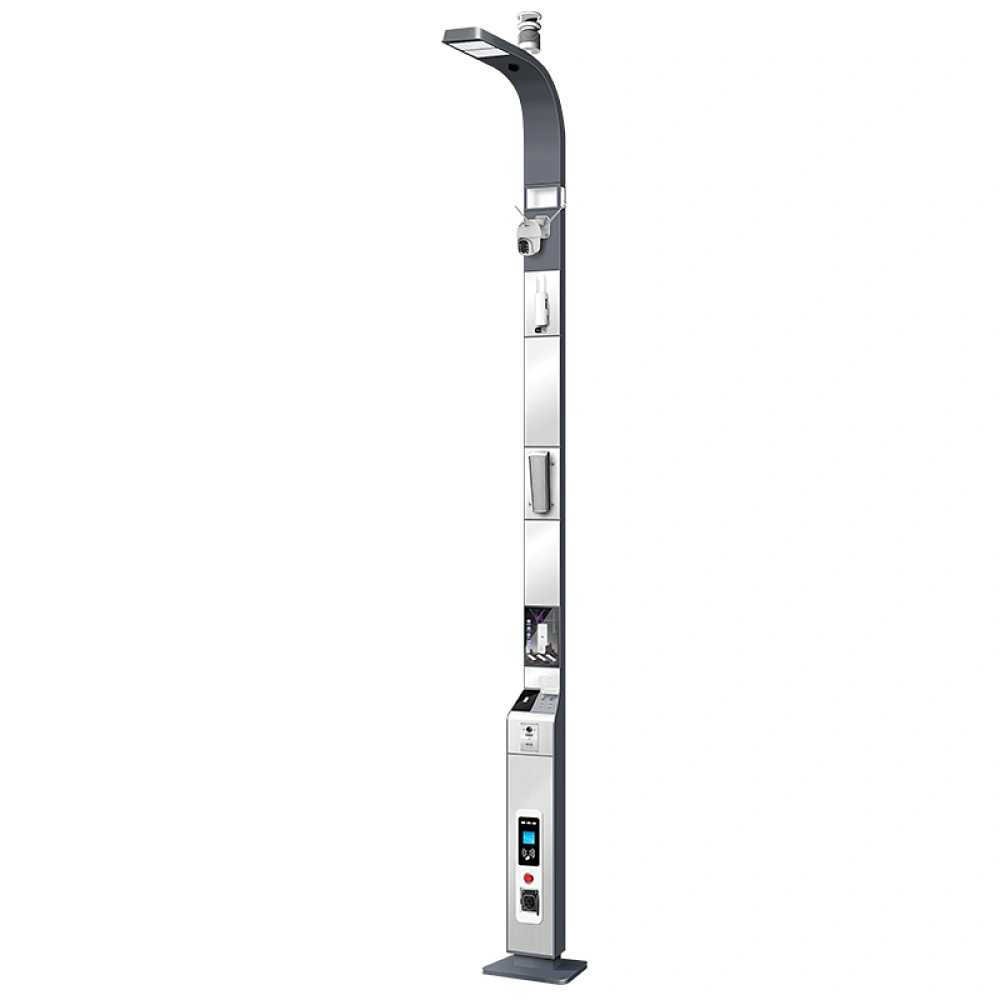

Smart Light Pole - 13 (New Moom)

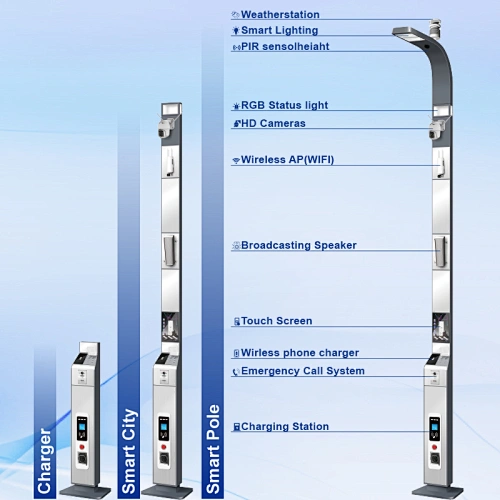

This patented product smart light pole-13 design with an attractive appearance and multiple functions such as a weather station, smart lighting, sensor, RGB status light, HD camera, wireless AP(WIFI), broadcasting speaker, LED/LCD touchscreen display, emergency call system, wire and wireless charging port, and charging station. The most salient feature is its charming design, which makes it a visually appealing addition to any environment, it is the perfect combination of beauty and practicality. Smart pole-13 is a beloved product from customers worldwide. Convenient integrated neat design does not take up much room to install but consists of necessary functions that mundane life needs. It minimizes installation space while providing all the essential services required in modern urban and community settings.

SCCS (Smart City Control System)

Is a city intelligent devices management system and built-in SSLS（Smart Street Light System), which was independently developed . It has strong functions such as data display on a large screen, devices management, ERP asset management, operation and maintenance management, user (sub-account) management, and integration with third-party systems to achieve more intelligent management. SCCS system can be used normally on the following devices: PC/iPad/mobile app (Android).

Smart Street Light Pole Application Scenarios

Smart Cities Connect To Intelligent Devices

Weather Station

Collect and send data to the monitoring center by concentrator, such as weather, temperature, humidity, lighting, PM2.5, noise, rainfall, wind speed, etc.

-------------------------------------------------------------------------------------------------

Smart Street Lighting

Smart street lighting Cellular cooling technology Intelligent single lamp / centralized controller Light distribution based on uniform brightness Various modular design lamp caps are optional

-------------------------------------------------------------------------------------------------

HD Cameras

Monitor traffic and security lighting. It is the secure monitor equipment through HD cameras for surveillance on the pole.

-------------------------------------------------------------------------------------------------

Wireless AP(WIFI)

Provide WiFi hotspots for different distances, and create network connectivity among the range of area.

-------------------------------------------------------------------------------------------------

Public Speaker

Upload a radio audio file or post emergency information from the control center, so that people nearby can understand what happened.

-------------------------------------------------------------------------------------------------

Emergency Call System

connect directly to the command center, respond quickly to emergency public security affairs, and position it.

-------------------------------------------------------------------------------------------------

LED Display

Advertise, and public information, pictures, and videos by smart city control system remotely. High efficiency and convenience.

SMART POLES & SMART CITY

(SCCS-Smart City Control System)

1. Smart City Control System： Cloud-based structure that supports high concurrent data access.
2. Fast and seamless access to third-party systems, such as SCCS smart city system access.
3. Distributed deployment system which can expand RTU capacity easily.
4. A variety of system security protection strategies to ensure software security and stable operation.
5. Boot self-running service support.
6. Support a variety of database clusters and large databases, automatic data backup .
7. Cloud service technical support and maintenance.

SCCS Structure

Smart street lighting cloud control system (SCCS) is a web-based solution with advanced communication and easy integration with existing installations, which can monitor individual luminaries up to millions of points of light. lt facilitates reduction in power consumption, emission, and light pollution and moreover an optimized maintenance planning.

·The system features

Fault alarms
Easy installation
Lamp and line status
Power quality metering
Remote monitoring（turn on/off, dimming, data query, etc)


·Cost savings

Energy and cost savings result from:

Dimming at off-peak traffic hours
Reduced maintenance costs
Burn hour optimization
Accurate switch ON/OFF



·CO, reductions

Reducing the costs and CO, emissions of streetlights is a necessary
challenge from utilities and distribution companies who face:

Rapidly increased electricity costs
Co, reduction requirements
Growing electricity demands

·Functions

-Cloud-based structure that supports high concurrent data access
-Distributed deployment system which can expand RTU capacity easily
-Fast and seamless access to third-party systems, such as smart city system access
-variety of system security protection strategies to ensure software security and stable operation
-Support a variety of large databases and database clusters, automatic data backup
-Boot self-running service support
-Cloud service technical support and maintenance

Functions Of the Lighting Smart Pole System

Distributed deployment, extendable RTU space
Keep the entire street lighting system in view
Easy to integrate with the third-party system
Support multiple communication protocols
Convenient management entry
Cloud-based system
Elegant design

Geographic Information System

The large-screen data display includes: equipment statistics, equipment online rate, operation and maintenance analysis prompts, alarm prompts, etc. Click on the solar street lights, city circuit lights, and smart light poles in the upper right corner of the page to enter each corresponding platform

Smart light pole system

The left and right columns on the page are the information of each device. The small icon in the middle can be clicked to perform basic operations. The first of the two text boxes in the middle of the page is to select the item to be demonstrated, and the second is to select the light pole that needs to be demonstrated. Device management in the upper right corner Access to advanced device management

Assets Management

Smart street light, control the street light switch in the lighting operation Optional, adjust the brightness by pulling the brightness progress bar, you can click Update to update the device information

One-click alarm, click the call for help button to alarm, record the alarm record

 Task Strategy

Choose The Device Needed The Most

Every piece of equipment can be chosen to install, choose the neediest one for your project to maximize the functions and make it cost-effective. Allowing for bespoke configurations to fit diverse urban applications and landscapes.
Experience intelligent urban management with loT integration, enabling real-time monitoring and control for enhanced city operations. Which makes Gebosun^® the best smart pole manufacturer.

Weather station
●Shell material: ASA engineering plastics

●Response time: less than 30 seconds
●Storage conditions: -40~60℃
●Standard wiring length: 3 meters
●The farthest lead length: RS485 1000 meters
●Stability: less than 1% during the sensor life cycle
●Working environment: temperature -30～70℃, working humidity: 0-100%
●Warm-up time: 30 seconds (SO2NO2COO3 3 hours)
●Working current: DC12V≤40mA(HCD6815)-DC12V≤125mA(HCD6820)
●Power consumption: DC12V≤0.5W(HCD6815); DC12V≤1.5W(HCD6820)
●Life: Except for SO2NO2COO3PM2.5PM10 (1 year in normal environment, high pollution environment is not guaranteed), the life span is not less than 3 years.

LED / LCD Display

-The LED backlight technology is used to combine the A -regulatory screen, color-saturated, uniform brightness, high contrast, delicate screen, long service life
-After rigorous the temperature control box test, the adaptation temperature can be between -30 ° and 80 °. Whether it is winter or summer, it can run stably
-The panel is covered with tempered glass, and the IP65 level level is waterproof and dust proof.
-Use low-power industrial processors to run stable and fast, not stuck
-Outstanding compatibility, stable operation of various systems, compatible with a variety of software, easy to operate, simple, smarter, faster

Wireless AP(WIFI)

• Support 64 user access, 40+users at the same time to meet WiFi coverage of small-medium sized squares/parks/scenic spots/villages
• Designed for outdoor wireless transmission, the transmission distance is ≥2km
• Remote management through the cloud platform is convenient for engineering maintenance and management and reduces the cost of material resources

Broadcasting Speaker

IP sound column system networking through Internet/WAN. Changing the traditional LAN networking mode, the audio import is convenient and fast, and the functions of high-definition video, two-way intercom, audio and video recording, electronic map display, and remote control of mobile phone APP for broadcasting are managed by different levels of authority. It is suitable for shopping malls, supermarkets, school classrooms, parks, outdoor homes, village broadcasts, companies and enterprises, unattended parking lots and other venues.

PTZ (outside camera）

·Adopt high-efficiency light-filling array, low power consumption, infrared light-filling 100 m.
·Ultra-low illuminance is supported, 0.005 Lux @F1.6 (color), 0.001 Lux @F1.6 (black and white), 0 Lux with IR.
·Support 485 to read Haikang standard battery power information and perform OSD superposition.
·Support three-bit stream technology, and each bit stream can independently configure the resolution and frame rate.
·Support intelligent detection such as area intrusion detection, cross-border detection, entering area detection and leaving area detection.
·Support Haikang SDK, open network video interface, ISAPI, GB/T28181, ISUP, fluorite.
·Support 4G (Mobile, China Unicom, telecommunications) network transmission, compatible with 3G (Mobile, China Unicom, telecommunications)

Emergency Call System

1 . All-digital audio-video intercom, using TCP/IP network transmission technology, compresses audio-video signals and transmits them in LAN/WAN in the form of data packets to realize pure digital bidirectional audio transmission or single bidirectional audio-video transmission.
 2 . The integrated system scheme configuration consists of system server software, multi-screen software, telephone agent software and an integrated IP network intercom terminal.
 3 . Multi-level management structure: The system has a multi-level management structure, which can unify the networking of multiple duty rooms at different levels; The system can be accessed by the other party with Ethernet, which supports cross-network segment and cross-routing, and can be connected to the Internet.
 4 . Support high-definition image resolution up to 1280*720, and adapt to the network bit stream technology.

IP video intercom paging console

Application Scenarios

This product is a central management machine applied in IP visual intercom, can be used with alarm / intercom server, can also be used independently, supports LAN and Internet use, with visual intercom, remote control, automatic queuing, remote call processing and other functions. Widely used in intercom, alarm, parking lot, government and enterprise, hotel, real estate, medical treatment, and other scenarios.

Introduce

"Visualization cloud head BS-YT 10"is a high-end desktop intercom terminal that integrates audio and video calls and hands-free calls. The appearance is simple and generous, with a 10.1-inch 1280 * 800 multitouch IPS capacitive screen and an 8-megapixel wide-angle HD camera that can flip to 210 degrees.

Charging Station

Smart Pole Charging Stations (referred to as Charging Stations) are new products designed according to customer needs. This product has the characteristics of small size, lightweight, high charging efficiency, small area, and atmospheric fashion.

The design of street light piles has various perfect protection, including AC leakage protection, lightning protection, charging current overflow police and protection, overvoltage of charging voltage, protection of underwriting, emergency power outage protection, etc.

DATA-BOX

● Support WIFI, 4G, Gigabit Ethernet port, and Gigabit fiber port to connect to Ethernet in various ways.

● Equipped with 2 optical fiber interfaces, with two-layer networking capability, suitable for ring and interactive chain networking scenarios. In the case of insufficient network ports, the number of network ports can be increased by adding switching communication components.

● Support three Netcoms, compatible with 2G3G4G networks of China Telecom, China Mobile and China Unicom.

● Support Microsim card, adopt anti-drop mechanism.

● Wired and wireless backup each other to ensure normal and stable data transmission, intelligently switch network backup, store data offline when the network is disconnected,  and resume data transmission after the network is restored.

● Powerful WIFI function, support AP, STA, Repeater mode to switch freely
