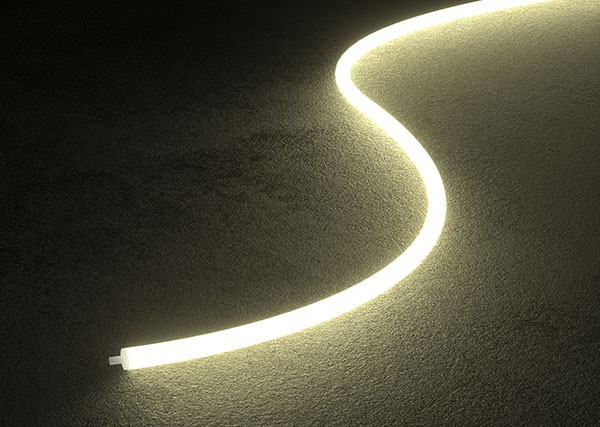

18*18 Round Neon Flex :11W/M

1818 Neon Flex
Model No.︰CDFN-24X-1818-T0
24V SMD Silcone Flex Neon
Brand Name︰ CASOLED
Certificate:CE ROHS
Minimum Order︰20m
Waterproof : IP67
Warranty: 3Years.
Availability:
Quantity:
  • CDFN-12X-1818-T0;CDFN-24X-1818-T0

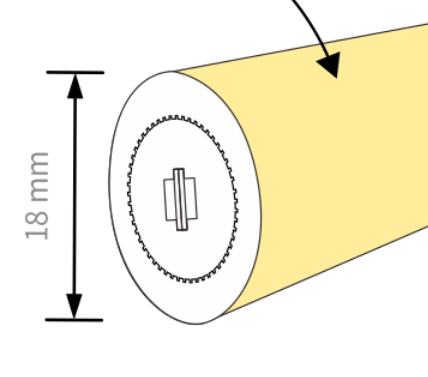

18*18 Silicone  Neon Flex

1693841410857

12Vdc

Model No. Color LED Qty Voltage(V) Size (mm) Power /m LED   Type Mini Cutting Length IP Grade CRI
CDFN-12R-1818-T0 Red 126LED/M 12vdc 18x18mm 11w/m SMD2835 23.8mm IP67 >90
CDFN-12Y-1818-T0 Yellow 126LED/M SMD2835 23.8mm
CDFN-12G-1818-T0 Green 126LED/M SMD2835 23.8mm
CDFN-12B-1818-T0 Blue 126LED/M SMD2835 23.8mm
CDFN-12W-1818-T0 White 240LED/M SMD2835 20mm
CDFN-12WW-1818-T0 W W   240LED/M SMD2835 20mm
CDFN-12C-1818-T3 RGB 84LED/m 12vdc 18x18mm 14.4/m SMD3838 35.7mm IP67 >90
CDFN-12F-1818-T3 SPI 84LED/m 12vdc 18x18mm 14.4/m SMD3838 35.7mm IP67 >90

24Vdc

Model No. Color LED Qty Voltage(V) Size (mm) Power /m LED   Type Mini Cutting Length IP Grade CRI
CDFN-24R-1818-T0 Red 126LED/M 24vdc 18x18mm 11w/m SMD2835 55.5mm IP67 >90
CDFN-24Y-1818-T0 Yellow 126LED/M SMD2835 55.5mm
CDFN-24G-1818-T0 Green 126LED/M SMD2835 55.5mm
CDFN-24B-1818-T0 Blue 126LED/M SMD2835 55.5mm
CDFN-24W-1818-T0 White 240LED/M SMD2835 40mm
CDFN-24WW-1818-T0 WW 240LED/M SMD3838 40mm
CDFN-24C-1818-T3 RGB 84LED/m 24vdc 18x18mm 14.4w/m SMD3838 71.4mm IP67 >90
CDFN-24F-1818-T3 SPI 84LED/m 24vdc 18x18mm 14.4w/m SMD3838 71.4mm IP67 >90

Features:

● High light transmittance, environmental protection grade silicone material, integrated extrusion molding process.

● Unique optical light distribution structure design, uniform lighting
surface and no shadow.

● IP67 protection level, salt solution resistance, acids & alkalis,
corrosive gases, fire and UV.

● Excellent toughness, simple and stylish appearance, delicate and unique.

● 3 years warranty, working life ≥30000 hours.

● CE, RoHS, TUV, BIS, CB and LM-80 certified

1693661234561

1693661295897

Application:

● LED Neon LED strip is suitable for park roads, playgrounds, shopping malls, building signs, LOGO signage, etc.

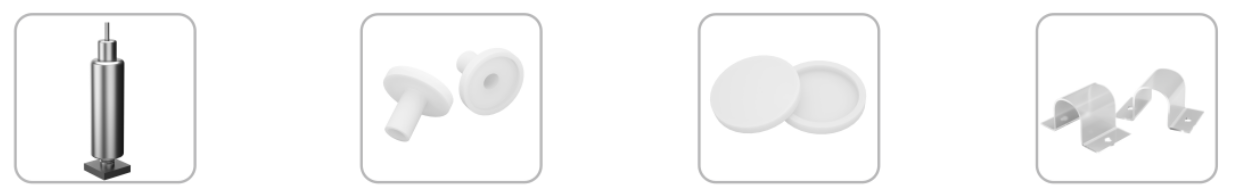

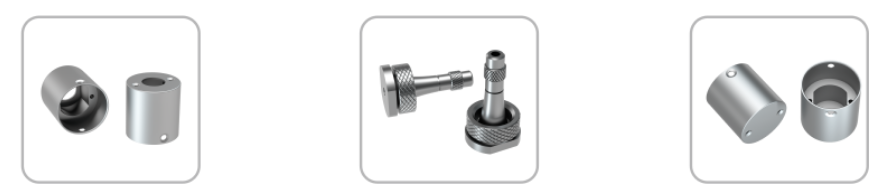

Accessories Assamble

1693841927864



1693841987147

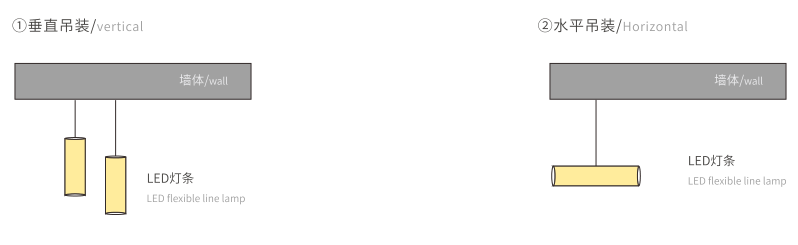

Fix:

1693842582344

Package:

1693660927125

Weight/Carton

15Kg/carton

Meter/Carton

80m

Package  Size/ Carton

410×410×250mm
