CAMZ-S43-1W-H0
CASOLED
9405409000
1 LED 3030 LED modules
| Part No. | Color | Dimension | Input Voltage | CRI | Power | Beam Angle | LED Qty | Lumens | IP Rate |
| CAMZ-S43-1W-H0 | White | 43*23*7.8mm | 12VDC | >=75 | 1.32W | 160° | 1 | 125lm | IP66 |
Features:
● Sourced by high output SMD3030, good color conformity and no spot.
● 99.99% gold thread, pure copper bracket coated with silver.
● SDCM≤5 each BIN.
● Special lens design, 160°beaming angle with even light.
● Overmoulded: anti-dusting, anti-moisture, waterproof, anti-shock.
● 20 pcs Max. in a series connection.
● CE, ROHS and certified.
Application
● Best for 3.5-15 cm depth single-sided light box at airports, metros, banks, buildings and shopping malls, etc.

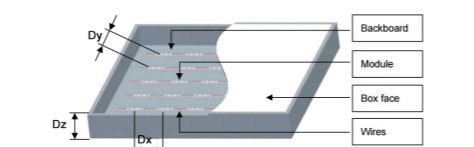

Reference

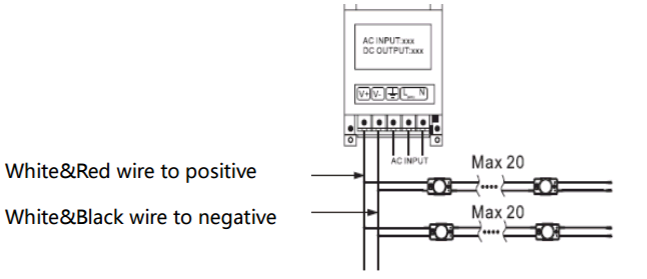

Connection:

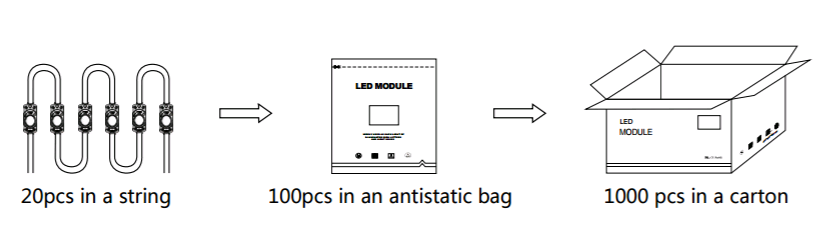

Weight/Carton | 11Kg/carton |
Quntity | 1000pcs/carton |
Package Size/ Carton | 490×450×220mm |
1 LED 3030 LED modules
| Part No. | Color | Dimension | Input Voltage | CRI | Power | Beam Angle | LED Qty | Lumens | IP Rate |
| CAMZ-S43-1W-H0 | White | 43*23*7.8mm | 12VDC | >=75 | 1.32W | 160° | 1 | 125lm | IP66 |
Features:
● Sourced by high output SMD3030, good color conformity and no spot.
● 99.99% gold thread, pure copper bracket coated with silver.
● SDCM≤5 each BIN.
● Special lens design, 160°beaming angle with even light.
● Overmoulded: anti-dusting, anti-moisture, waterproof, anti-shock.
● 20 pcs Max. in a series connection.
● CE, ROHS and certified.
Application
● Best for 3.5-15 cm depth single-sided light box at airports, metros, banks, buildings and shopping malls, etc.
Reference
Connection:
Weight/Carton | 11Kg/carton |
Quntity | 1000pcs/carton |
Package Size/ Carton | 490×450×220mm |
