CAMZ-S75-3W-T0
CASOLED
9405409000

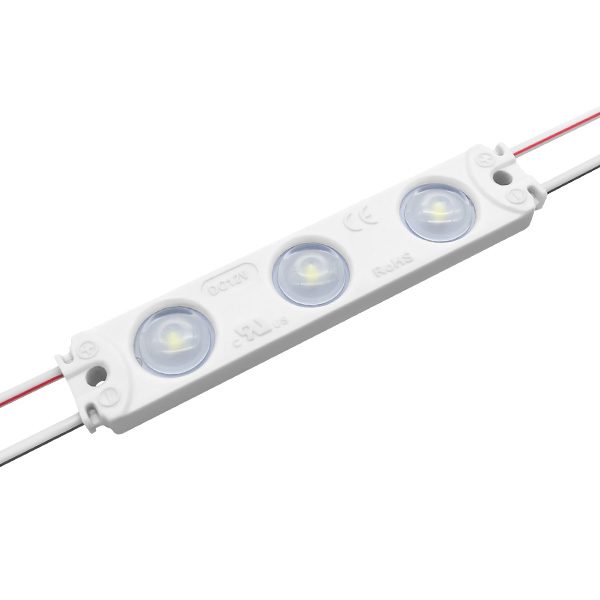

3 LED SMD2835 160°
| Part No. | Color | Dimension | Input Voltage | Current | Power | Beam Angle | LED Qty | Lumens | IP Rate |

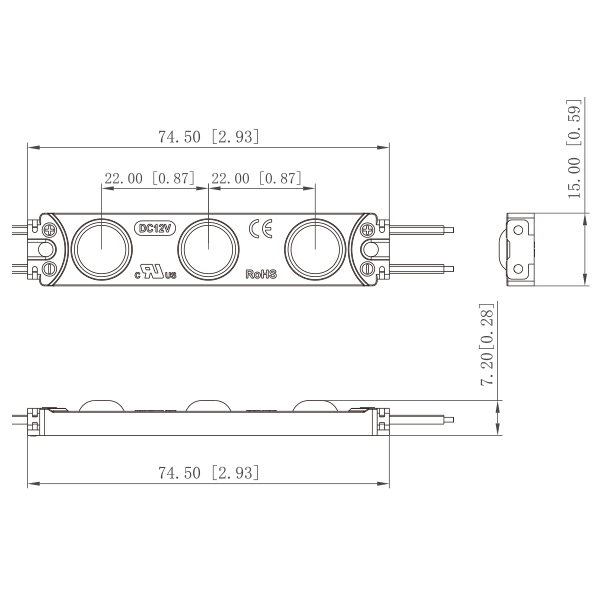

| CAMZ-S75-3W-T0 | White | 74.5*15*5.8 | 12VDC | ≥75 | 1W | 160° | 3 | 100lm | IP65 |
Features
● Sourced by high output SMD2835, good color conformity and no spot.
● 99.99% gold thread, pure copper bracket coated with silver.
● SDCM≤5 each BIN.
● Special lens design, 160°beaming angle with even light.
● Overmoulded: anti-dusting, anti-moisture, waterproof, anti-shock.
● 20 pcs Max. in a series connection.
● CE, ROHS and certified.
Application:
● Best for 8-15 cm depth signs at airports, metros, banks, buildings and shopping malls, etc.
Beam Angle
Reference
Connection:
Packages
* Anti-static bag and carton
Weight/Carton | 12Kg/carton |
Quntity | 1500pcs/carton |
Package Size/ Carton | 490×450×220mm |
