CA-TFD-120W;CA-TFD-240W;CA-TFD-150W;CA-TFD-300W
CASOLED
94054090000
LED Flood Light
Specification:
Model No. | CA-TFD-120W | CA-TFD-150W | CA-TFD-240W | CA-TFD-300W |
Power | 120W | 150W | 240W | 300W |
Input Voltage | AC100-305V | |||
Material | Fin-type 1060 Aluminum | |||
Light Efficiency | 140lm/w & 165lm/w | |||
LEDs Brand | Lumileds SMD3030/5050 | |||
Driver | Meanwell | |||
CCT | 2700K-6500K | |||

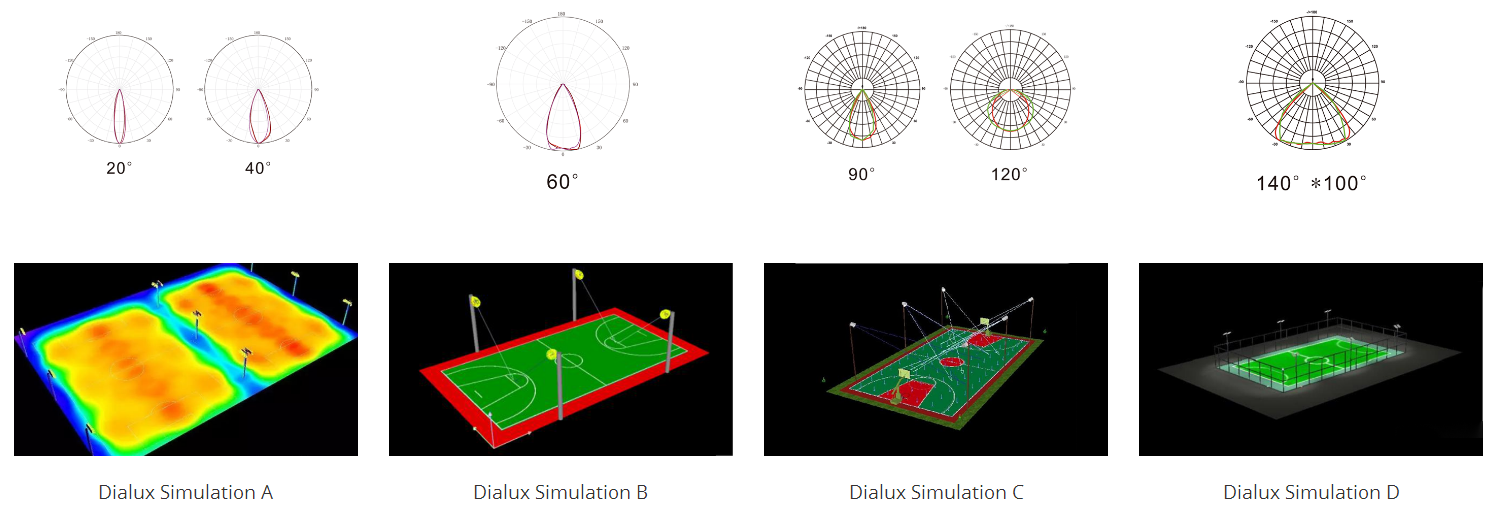

Beam Angle | 20°/40°/60°/90°/120°/140°*100° | |||
Lifespan | 50,000 Hours | |||
Warranty | 5 Years | |||
Certifications | CE, RoHs, IP67, LM-80 | |||
Product Size | 330*230*80mm | 330*365*83mm | ||
Net Weight | 4.35KG | 6.45KG | 6.5KG | |
Advantages
1. Fin-type 1060 aluminum is adopted, thermal conductivity efficiency 230W/M.K. Heat sinking surface is 80% more than traditional die-casting aluminum, lighter weight compared to same wattage die-casting flood light. Lower pressure for project roofs and saves a lot of freight.
2. Angle adjustable for each single modules.
3. Using Meanwell driver, Lumileds SMD3030/5050 led chips, light efficiency up to 165lm/w, avoiding trouble for project.
4. High presion optical lens with different beam angles for options. Do not turn yellow after use long time. High brightness and better lumen maintenace rate.
5. Optional 5 or 7 years warranty
6. Stainless steel screw, anti-corrosion, reliable performance.

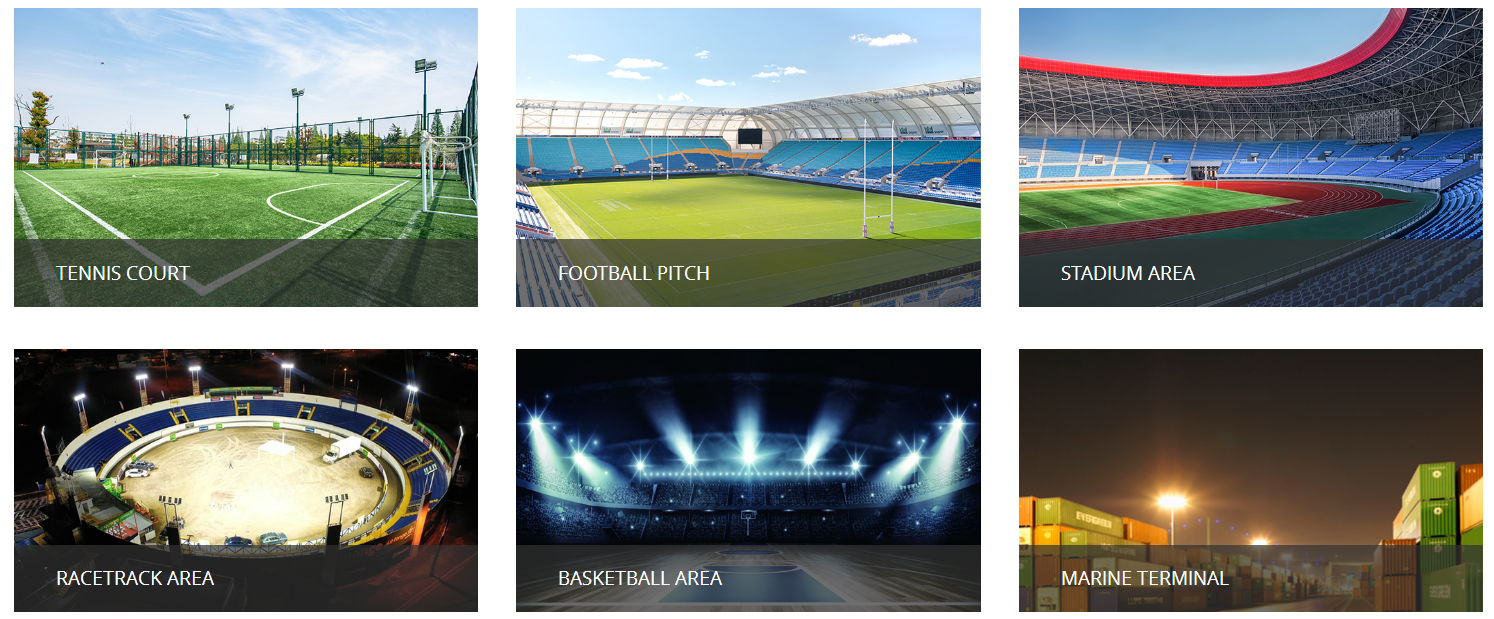

7. Applications: parking lot lighting, sports stadium lighting, billboard lighting, outdoor and indoor area lighting, warehourse and security areas.
Power: 120W/150W/240W/300W
Material: Fin-type 1060 aluminum
Input Voltage: AC100-305V
Meawell Driver, Lumileds SMD 3030/5050
light efficiency: 140lm/w standard, 165lm/w for optional
DALI, 0-10, 1-10 Dimming
IP67 Waterproof
5 & 7 years warrany
Certifications: CE, RoHs
