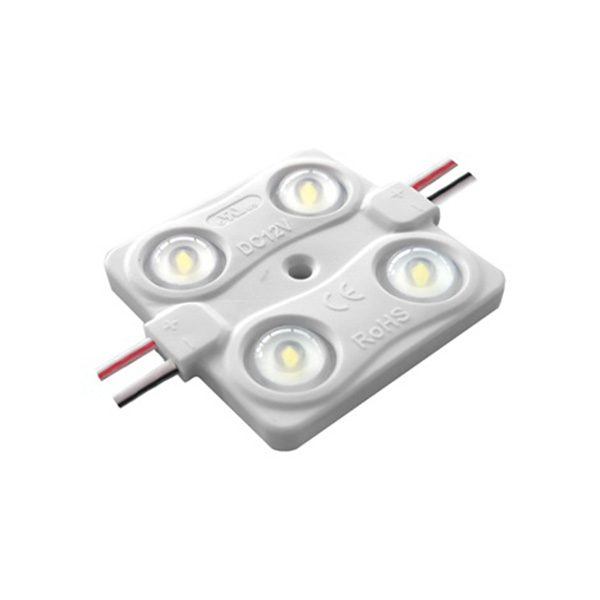

40*36 LED Module : 1W

Model Number: CAMZ-S40-4X-T0
Product Size:40*36*5.6
Working Voltage:DC 12V
Power:1W
Luminous Flux110LM
Beam Angle:160
Availability:
Quantity:
  • CAMZ-S40-4X-T0

  • CASOLED

40*36 SMD LED Module

Part  No.  Color Dimension Input  Voltage Current Power Beam Angle  LED  Qty Lumens IP Rate
CAMZ-S40-4W-T0 White 40*36*5.6 12VDC 83MA 1.2W 160° 4 110lm IP65


Features

1. Adopting super bright SMD2835, better heat dissipation and longer lifespan.

2. 160°beaming angle and light evenly

3. Well sealed:anti-dusting, anti-moisture, waterproof, anti-shock.

4. CE , RoHS and certified.

1693897676793

Apply to 6-20cm depth signs at airports, metros, banks, buildings and shopping malls, etc.

Beam Angle:

QQ图片20190429153319

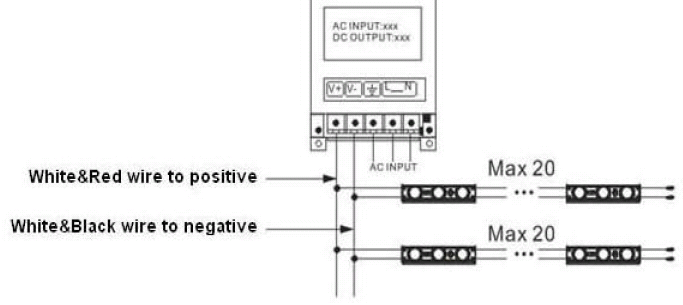

Connection

QQ图片20190429152716


Packages

QQ图片20190429152821

Weight/Carton

15.5Kg/carton

Quntity

1000pcs/carton

Package  Size/ Carton

490×450×220mm
