70*14 LED Module: 1W

Model Number: CAMZ-S70-3X-T0
Product Size:70*14*6mm
Working Voltage:DC 12V
Power:1W
Luminous Flux:90LM
Beam Angle:160
Availability:
Quantity:
  • CAMZ-S70-3W-T0

  • CASOLED

  • 9405409000

70*14  SMD2835 LED Module

Part  No.  Color Dimension Input  Voltage Current Power Beam Angle  LED  Qty Lumens IP Rate
CAMZ-S70-3W-T0 White 70*14*6 12VDC ≥75 1W 160° 3 70lm IP65


Features

●  Sourced by high output SMD2835, good color conformity and no spot.
●  99.99% gold thread, pure copper bracket coated with silver.
●  SDCM≤5 each BIN.
●  Special lens design, 160°beaming angle with  even light.
●  Overmoulded: anti-dusting, anti-moisture, waterproof, anti-shock.
●  20 pcs Max. in a series connection.
●  CE, ROHS and certified.

1693912060282_副本

Application:

●  Best for 8-15 cm depth signs at airports, metros, banks, buildings and shopping malls, etc.


Beam Angle

QQ图片20190421155311

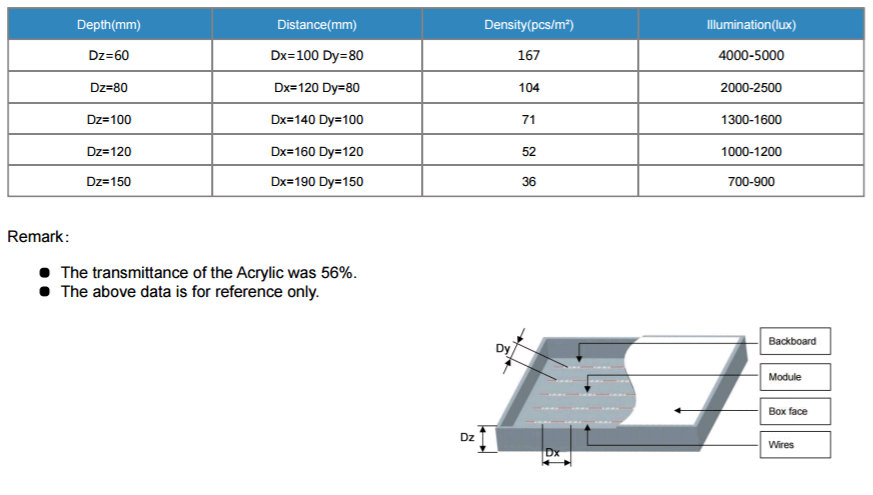

Reference

QQ图片20190422121608

Connection:

QQ图片20190422112146

Packages

* Anti-static bag and  carton

QQ图片20190422112237

Weight/Carton

12Kg/carton

Quntity

1000pcs/carton

Package  Size/ Carton

490×450×220mm
