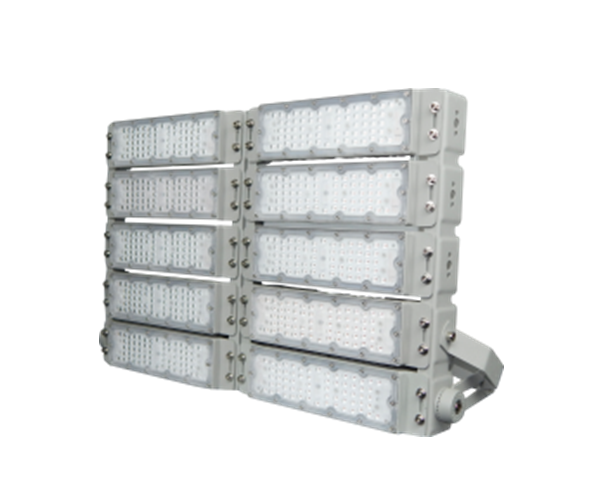

SD1 LED Flood Light 50W/100W/150W/200W/250W/300W/500W

Luminous Efficiency: 130lm/w
Luminous flux: 26000lm/32500lm/lm/39000lm
IP Grade: Waterproof IP65
Material: PC & Aluminum alloy
Beam Angle: 60°/90°/75°*145°
Input Voltage: 85-265VAC
CRI/Ra: >70
Color Temperature: 2700-6500K Cool White/White/Warm White
Light Source:Philips SMD3030/5050
Life Span: 50,000 hours
Certificate: CE,ROHS, LM80. IP65
Warranty: 5 years
  • CA-SD1-50W/100W/150W/200W/250W/300W/500W


  • 94054090000

50W/100W/150W/200W/250W/300W/500W Watts Modular LED Flood Lights Spotlight Lamp for Outdoor Football Tunnel Stadium Field

1. Fin-type 1060 aluminum is adopted, thermal conductivity efficiency 230W/M.K. Heat sinking surface is 80% more than traditional die-casting aluminum, lighter weight compared to same wattage die-casting flood light. Lower pressure for project roofs and saves a lot of freight.

2. Angle adjustable for each single modules.

3. Using Meanwell driver, Philips  SMD3030/5050 led chips, light efficiency up to 165lm/w, avoiding trouble for project.

4. High presion optical lens with different beam angles for options. Do not turn yellow after use long time. High brightness and better lumen maintenace rate.

5. Optional 5 or 7 years warranty

6. Stainless steel screw, anti-corrosion, reliable performance.

7. Applications: parking lot lighting, sports stadium lighting, billboard lighting, outdoor and indoor area lighting, warehourse and security area

Please see the Catalog

LED SD1 Flood Light_1LED SD1 Flood Light_2
