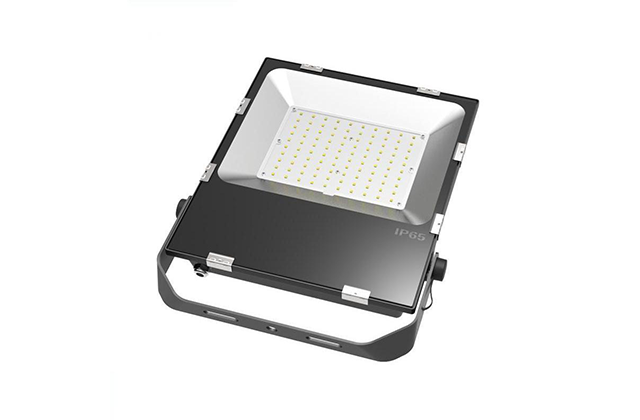

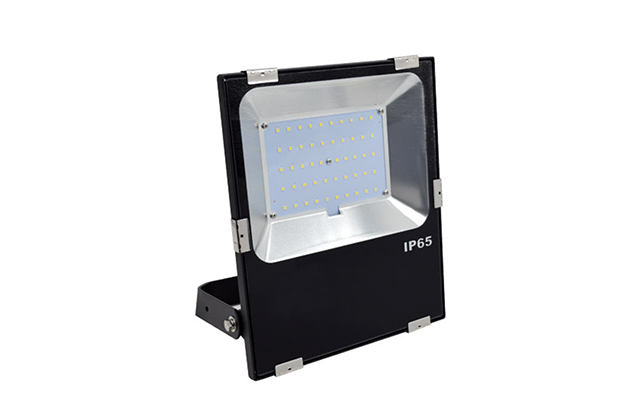

TG LED Flood Light 20/30/50/80/100/150/200/250/300/400/500W

Power: 20/30/50/80/100/150/200/250/300/400/500W
Material: Die-casting Aluminum
Input Voltage: AC100-305V
Meawell Driver,Philips SMD 3030/5050
light efficiency: 140lm/w
CRI/Ra: ≥70
DALI, 0-10, 1-10 Dimming
Beam Angle: 7°/15°/60°/90°/120°/T2M/T3M/T4M
IP66 Waterproof
5 years warrany
Certifications: CE, RoHs
Application: square lighting, high mast area lighting, Large building projection lighting, long-distance lighting, airport high mast lighting, highway, park high pole lighting, basketball court, football field, tennis, baseball field, etc.
Availability:
Quantity:
  • CA-TGL- 20/30/50/80/100/150/200/250/300/400/500W

  • CASOLED

20/30/50/80/100/150/200/250/300/400/500W Watts ED Flood Lights Spotlight Lamp for Outdoor Football Tunnel Stadium Field

IP66 400w/500w/600w high mast led lights high mast pole flood light specialized for baseball basketball tennis area lighting

The protection level reaches IP65

Pure Aluminum 6063 body. The surface of the lamp body is anodized for a higher level of corrosion protection.

Both ends are molded by ADC12 die-casting, electrostatic spraying on the surface, strong anti-corrosion

Air convection cooling method to ensure the working temperature of the light source.

The product has a large built-in space and can be equipped with intelligent PLC, Zigbee, induction and other modules.

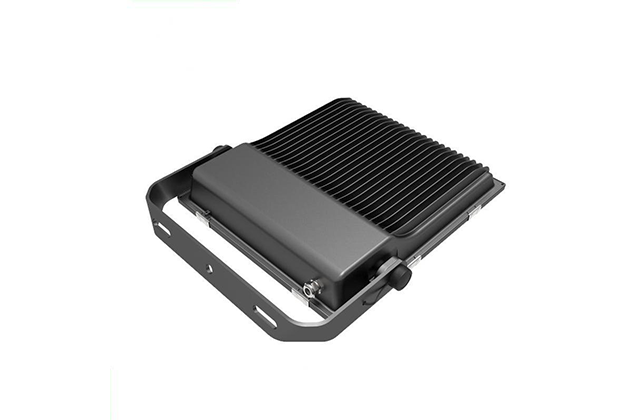

Independent power box design to support more power, which is beneficial to ligh body heat dissipation,

reducing light decay and prolonging service life.

Meanwell driver : Built-in waterproof power + shell protection, placed under the lamp body, operating temperature

range -40℃~50℃,  with short-circuit / overload / over-voltage / over-temperature protection.

The bracket mounting angle adjusts the nuclear rotation to the full size disc, using 316 stainless steel screws.

Rotating bracket mounting, ₵60 pole, wall mounted

Anti-glare shell improving the surface Lux.

Philips SMD3030 led chips, light efficiency up to 140lm/w. Three drives for optional: Meanwell/Sonsen/Inventronics

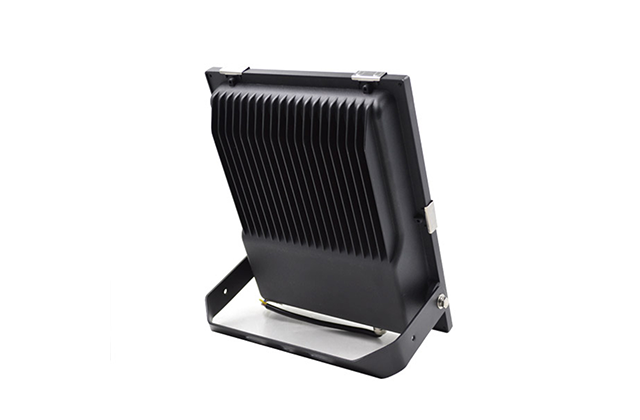

High thickness modular aluminum heat sink. Mult beam angle option PC optical lens.
