CAMZ-S495-5W-S3
CASOLED
9405409000

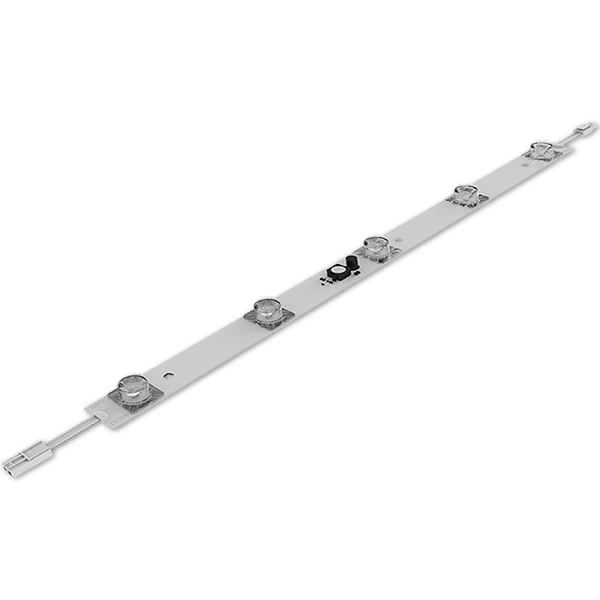

4 OSRAM LED Module

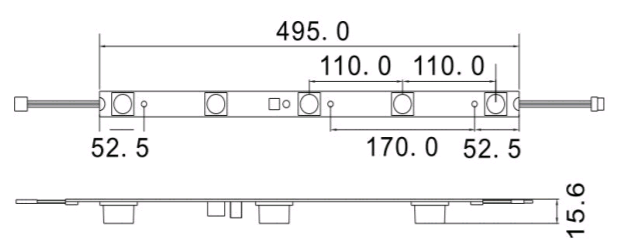

| Part No. | Color | Dimension | Input Voltage | CRI | Power | Beam Angle | LED Qty | Lumens | IP Rate |
| CAMZ-S495-4W-S3 | White | 495*26.7*15.6mm | 24VDC | 75 | 15W | 15°/45° | 5 | 1350lm | IP33 |
Features
● Sourced by high output OSRAM LED, good color conformity and no spot.
● 99.99% gold thread, pure copper bracket coated with silver.
● SDCM≤3 each BIN.
● Special lens design, 15*45°beaming angle with even light.
● 20 pcs Max. in a series connection.
● CE, ROHS and certified.
Application
● Best for 10-30cm depth double-sided light box or 10-20cm depth single-sided light box at airports,metros, banks, buildings and shopping malls, etc.
Beam Angle
Reference

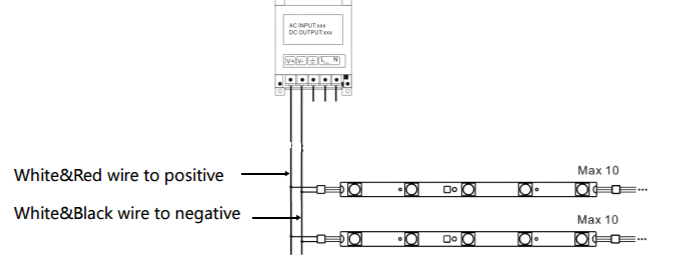

Connect

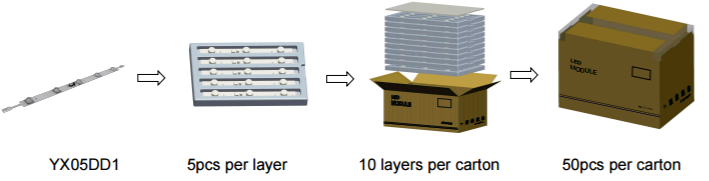

Package
Weight/Carton | 4.5Kg/carton |
Quntity | 50pcs/carton |
Package Size/ Carton | 583×242×270mm |
4 OSRAM LED Module
| Part No. | Color | Dimension | Input Voltage | CRI | Power | Beam Angle | LED Qty | Lumens | IP Rate |
| CAMZ-S495-4W-S3 | White | 495*26.7*15.6mm | 24VDC | 75 | 15W | 15°/45° | 5 | 1350lm | IP33 |
Features
● Sourced by high output OSRAM LED, good color conformity and no spot.
● 99.99% gold thread, pure copper bracket coated with silver.
● SDCM≤3 each BIN.
● Special lens design, 15*45°beaming angle with even light.
● 20 pcs Max. in a series connection.
● CE, ROHS and certified.
Application
● Best for 10-30cm depth double-sided light box or 10-20cm depth single-sided light box at airports,metros, banks, buildings and shopping malls, etc.
Beam Angle
Reference
Connect
Package
Weight/Carton | 4.5Kg/carton |
Quntity | 50pcs/carton |
Package Size/ Carton | 583×242×270mm |
