CAMZ-S295-3W-S3
CASOLED
9405409000
295*27.5 Edge-lit LED Module

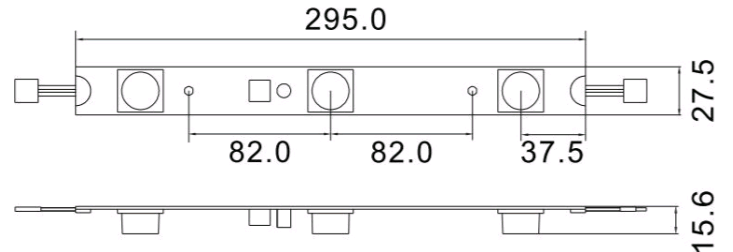

| Part No. | Color | Dimension | Input Voltage | CRI | Power | Beam Angle | LED Qty | Lumens | IP Rate |
| CAMZ-S295-3W-S3 | White | 295*27.5*15.6mm | 24VDC | 75 | 9W | 15°/45° | 3 | 810lm | IP33 |
Features
● Sourced by high output OSRAM LED, good color conformity and no spot.
● 99.99% gold thread, pure copper bracket coated with silver.
● SDCM≤3 each BIN.
● Special lens design, 15*45°beaming angle with even light.
● 20 pcs Max. in a series connection.
● CE, ROHS and certified.
Application
● Best for 10-30cm depth double-sided light box or 10-20cm depth single-sided light box at airports,metros, banks, buildings and shopping malls, etc.

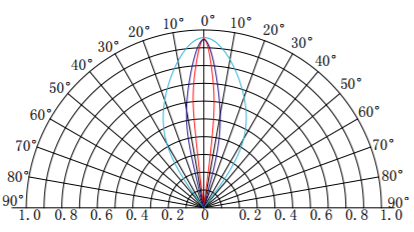

Beam Angle
Reference
Connection

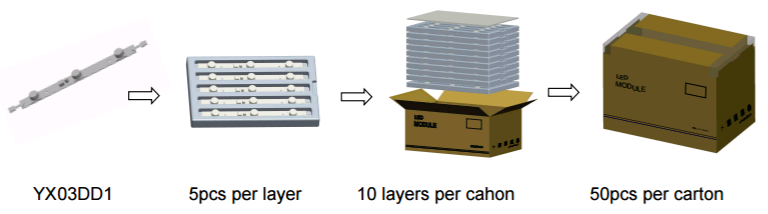

Package
Weight/Carton | 4.5Kg/carton |
Quntity | 50pcs/carton |
Package Size/ Carton | 370×242×270mm |
