10*10 Flat Neon Flex: 11W/M

2020 Neon Flex
Model No.︰CBFN-12X-1010-T0;CAFN-24X-1010-T0
Brand Name︰ CASOLED
Certificate:CE ROHS
Minimum Order︰20m
Waterproof : IP67
Warranty: 3Years.
Availability:
Quantity:
  • CBFN-12X-1010-T0;CBFN-24X-1010-T0

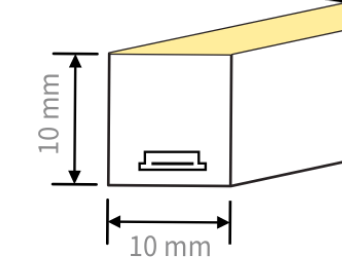

10*10 Silicone  Neon Flex

16937998930461693800595035


12Vdc

Model No. Color LED Qty Voltage(V) Size (mm) Power /m LED   Type Mini Cutting Length IP Grade CRI
CBFN-12R-1010-T0 Red 126LED/M 12vdc 10x10mm 11w/m SMD2835 23.8mm IP67 >90
CBFN-12Y-1010-T0 Yellow 126LED/M SMD2835 23.8mm
CBFN-12G-1010-T0 Green 126LED/M SMD2835 23.8mm
CBFN-12B-1010-T0 Blue 126LED/M SMD2835 23.8mm
CBFN-12W-1010-T0 White 84LED/M SMD3838 20mm
CBFN-12WW-1010-T0 W W   84LED/M SMD3838 20mm
CBFN-12C-1010-T3 RGB 84LED/m 12vdc 10x10mm 14.4/m SMD3838 71.4mm IP67 >90
CBFN-12F-1010-T3 SPI 84LED/m 12vdc 10x10mm 14.4/m SMD3838 71.4mm IP67 >90

24Vdc

Model No. Color LED Qty Voltage(V) Size (mm) Power /m LED   Type Mini Cutting Length IP Grade CRI
CBFN-24R-1010-T0 Red 126LED/M 24vdc 10x10mm 11w/m SMD2835 55.5mm IP67 >90
CBFN-24Y-1010-T0 Yellow 126LED/M SMD2835 55.5mm
CBFN-24G-1010-T0 Green 126LED/M SMD2835 55.5mm
CBFN-24B-1010-T0 Blue 126LED/M SMD2835 55.5mm
CBFN-24W-1010-T0 White 84LED/M SMD3838 40mm
CBFN-24WW-1010-T0 WW 84LED/M SMD3838 40mm
CBFN-24C-1010-T3 RGB 84LED/m 24vdc 10x10mm 14.4w/m SMD3838 71.4mm IP67 >90
CBFN-24F-1010-T3 SPI 84LED/m 24vdc 10x10mm 14.4w/m SMD3838 71.4mm IP67 >90

Features:

● High light transmittance, environmental protection grade silicone material, integrated extrusion molding process.

● Unique optical light distribution structure design, uniform lighting
surface and no shadow.

● IP67 protection level, salt solution resistance, acids & alkalis,
corrosive gases, fire and UV.

● Excellent toughness, simple and stylish appearance, delicate and unique.

● 3 years warranty, working life ≥30000 hours.

● CE, RoHS, TUV, BIS, CB and LM-80 certified

1693661234561

1693661295897

Application:

● LED Neon LED strip is suitable for park roads, playgrounds, shopping malls, building signs, etc.

Accessories Assamble

619d922185e11-1-_fuben

weixintupian_20230217120126 (1)weixintupian_20230217120254

Fix:

weixintupian_20230217120426


Package

1693660927125

Weight/Carton

15Kg/carton

Meter/Carton

80m

Package  Size/ Carton

410×410×250mm
