CAFN-12X-0511-T0；CAFN-24X-0511-T0

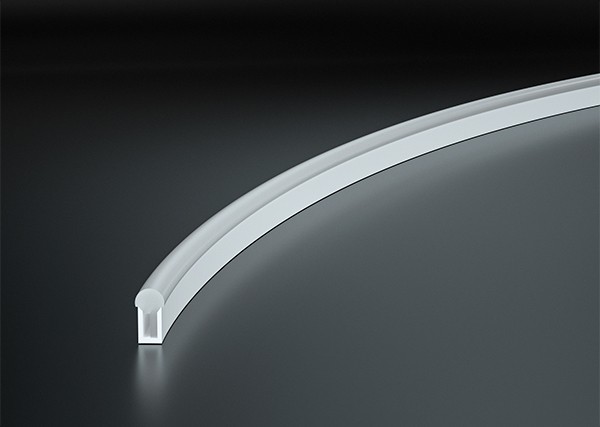

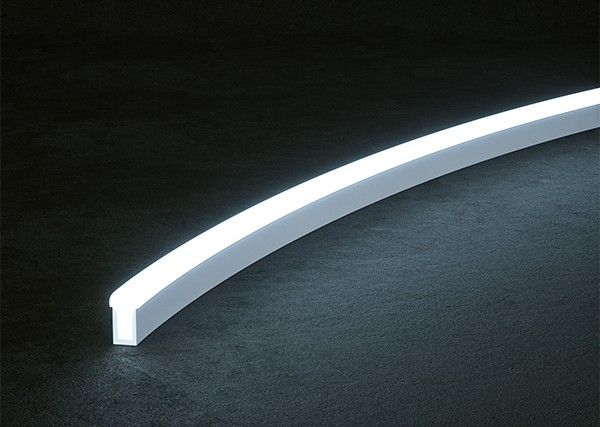

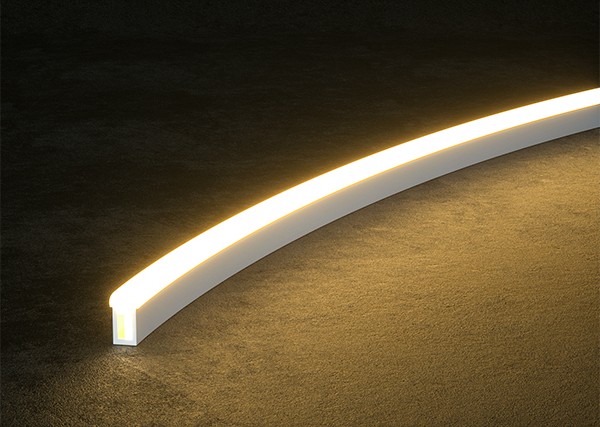

5*11 Silicone Neon Flex
12Vdc
| Model No. | Color | LED Qty | Voltage(V) | Size (mm) | Power /m | LED Type | Mini Cutting Length | IP Grade | CRI |
| CAFN-12R-0511-T0 | Red | 126LED/M | 12vdc | 5x11mm | 11w/m | SMD2835 | 23.8mm | IP67 | >90 |
| CAFN-12Y-0511-T0 | Yellow | 126LED/M | SMD2835 | 23.8mm | |||||
| CAFN-12G-0511-T0 | Green | 126LED/M | SMD2835 | 23.8mm | |||||
| CAFN-12B-0511-T0 | Blue | 126LED/M | SMD2835 | 23.8mm | |||||
| CAFN-12W-0511-T0 | White | 300LED/M6 | SMD2216 | 20mm | |||||
| CAFN-12WW-0511-T0 | W W | 300LED/M | SMD2216 | 20mm |
24vdc
| Model No. | Color | LED Qty | Voltage(V) | Size (mm) | Power /m | LED Type | Mini Cutting Length | IP Grade | CRI |
| CAFN-24R-0511-T0 | Red | 126LED/M | 24vdc | 5x11mm | 11w/m | SMD2835 | 55.5mm | IP67 | >90 |
| CAFN-24Y-0511-T0 | Yellow | 126LED/M | SMD2835 | 55.5mm | |||||
| CAFN-24G-0511-T0 | Green | 126LED/M | SMD2835 | 55.5mm | |||||
| CAFN-24B-0511-T0 | Blue | 126LED/M | SMD2835 | 55.5mm | |||||
| CAFN-24W-0511-T0 | White | 300LED/M | SMD2216 | 40mm | |||||
| CAFN-24WW-0511-T0 | W W | 300LED/M | SMD2216 | 40mm |
Features:● High light transmittance, environmental protection grade silicone material, integrated extrusion molding process.
● Unique optical light distribution structure design, uniform lighting
surface and no shadow.
● IP67 protection level, salt solution resistance, acids & alkalis,
corrosive gases, fire and UV.
● Excellent toughness, simple and stylish appearance, delicate and unique.
● 3 years warranty, working life ≥30000 hours.
● CE, RoHS, TUV, BIS, CB and LM-80 certified
● LED Neon LED strip is suitable for park roads, playgrounds, shopping malls, building signs, LOGO signage, etc.
Accessories Assamble
Fix:
Package
Weight/Carton | 15Kg/carton |
Meter/Carton | 80m |
Package Size/ Carton | 410×410×250mm |
5*11 Silicone Neon Flex
12Vdc
| Model No. | Color | LED Qty | Voltage(V) | Size (mm) | Power /m | LED Type | Mini Cutting Length | IP Grade | CRI |
| CAFN-12R-0511-T0 | Red | 126LED/M | 12vdc | 5x11mm | 11w/m | SMD2835 | 23.8mm | IP67 | >90 |
| CAFN-12Y-0511-T0 | Yellow | 126LED/M | SMD2835 | 23.8mm | |||||
| CAFN-12G-0511-T0 | Green | 126LED/M | SMD2835 | 23.8mm | |||||
| CAFN-12B-0511-T0 | Blue | 126LED/M | SMD2835 | 23.8mm | |||||
| CAFN-12W-0511-T0 | White | 300LED/M6 | SMD2216 | 20mm | |||||
| CAFN-12WW-0511-T0 | W W | 300LED/M | SMD2216 | 20mm |
24vdc
| Model No. | Color | LED Qty | Voltage(V) | Size (mm) | Power /m | LED Type | Mini Cutting Length | IP Grade | CRI |
| CAFN-24R-0511-T0 | Red | 126LED/M | 24vdc | 5x11mm | 11w/m | SMD2835 | 55.5mm | IP67 | >90 |
| CAFN-24Y-0511-T0 | Yellow | 126LED/M | SMD2835 | 55.5mm | |||||
| CAFN-24G-0511-T0 | Green | 126LED/M | SMD2835 | 55.5mm | |||||
| CAFN-24B-0511-T0 | Blue | 126LED/M | SMD2835 | 55.5mm | |||||
| CAFN-24W-0511-T0 | White | 300LED/M | SMD2216 | 40mm | |||||
| CAFN-24WW-0511-T0 | W W | 300LED/M | SMD2216 | 40mm |
Features:● High light transmittance, environmental protection grade silicone material, integrated extrusion molding process.
● Unique optical light distribution structure design, uniform lighting
surface and no shadow.
● IP67 protection level, salt solution resistance, acids & alkalis,
corrosive gases, fire and UV.
● Excellent toughness, simple and stylish appearance, delicate and unique.
● 3 years warranty, working life ≥30000 hours.
● CE, RoHS, TUV, BIS, CB and LM-80 certified
● LED Neon LED strip is suitable for park roads, playgrounds, shopping malls, building signs, LOGO signage, etc.
Accessories Assamble
Fix:
Package
Weight/Carton | 15Kg/carton |
Meter/Carton | 80m |
Package Size/ Carton | 410×410×250mm |
