CAFN-12X-2020-T0;CAFN-24X-2020-T0

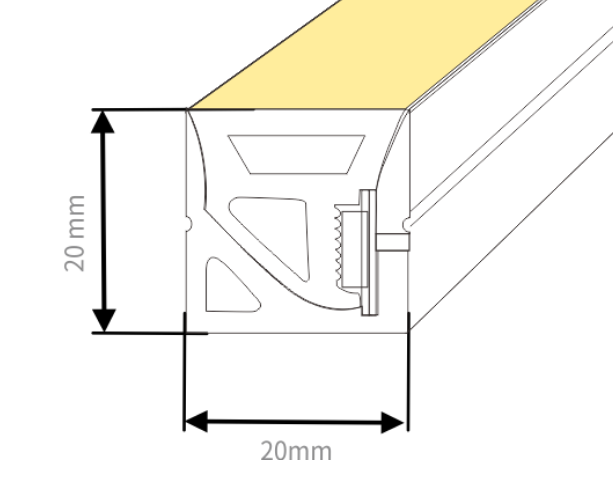

20*20 Silicone Neon Flex
12Vdc
| Model No. | Color | LED Qty | Voltage(V) | Size (mm) | Power /m | LED Type | Mini Cutting Length | IP Grade | CRI |
| CBFN-12R-2020-T0 | Red | 126LED/M | 12vdc | 20x20mm | 11w/m | SMD2835 | 23.8mm | IP67 | >90 |
| CBFN-12Y-2020-T0 | Yellow | 126LED/M | SMD2835 | 23.8mm | |||||
| CBFN-12G-2020-T0 | Green | 126LED/M | SMD2835 | 23.8mm | |||||
| CBFN-12B-2020-T0 | Blue | 126LED/M | SMD2835 | 23.8mm | |||||
| CBFN-12W-2020-T0 | White | 84LED/M | SMD2835 | 20mm | |||||
| CBFN-12WW-2020-T0 | W W | 84LED/M | SMD3838 | 20mm | |||||
| CBFN-12C-2020-T3 | RGB | 84LED/m | 12vdc | 20x20mm | 14.4/m | SMD3838 | 35.7mm | IP67 | >90 |
| CBFN-12F-2020-T3 | SPI | 84LED/m | 12vdc | 20x20mm | 14.4/m | SMD3838 | 35.7mm | IP67 | >90 |
| Model No. | Color | LED Qty | Voltage(V) | Size (mm) | Power /m | LED Type | Mini Cutting Length | IP Grade | CRI |
| CBFN-24R-2020-T0 | Red | 126LED/M | 24vdc | 20x20mm | 11w/m | SMD2835 | 55.5mm | IP67 | >90 |
| CBFN-24Y-2020-T0 | Yellow | 126LED/M | SMD2835 | 55.5mm | |||||
| CBFN-24G-2020-T0 | Green | 126LED/M | SMD2835 | 55.5mm | |||||
| CBFN-24B-2020-T0 | Blue | 126LED/M | SMD2835 | 55.5mm | |||||
| CBFN-24W-2020-T0 | White | 84LED/M | SMD3838 | 40mm | |||||
| CBFN-24WW-2020-T0 | WW | 84LED/M | SMD3838 | 40mm | |||||
| CBFN-24C-2020-T3 | RGB | 84LED/m | 24vdc | 20x20mm | 14.4w/m | SMD3838 | 71.4mm | IP67 | >90 |
| CBFN-24F-2020-T3 | SPI | 84LED/m | 24vdc | 20x20mm | 14.4w/m | SMD3838 | 71.4mm | IP67 | >90 |
● High light transmittance, environmental protection grade silicone material, integrated extrusion molding process.
● Unique optical light distribution structure design, uniform lighting
surface and no shadow.
● IP67 protection level, salt solution resistance, acids & alkalis,
corrosive gases, fire and UV.
● Excellent toughness, simple and stylish appearance, delicate and unique.
● 3 years warranty, working life ≥30000 hours.
● CE, RoHS, TUV, BIS, CB and LM-80 certified
● LED Neon LED strip is suitable for park roads, playgrounds, shopping malls, building signs, etc.
Accessories Assamble
Fix:
Package
Weight/Carton | 15Kg/carton |
Meter/Carton | 80m |
Package Size/ Carton | 410×410×250mm |
