| Quantity: | |
|---|---|
CBFN-12X-1305-T0;CBFN-24X-1305-T0

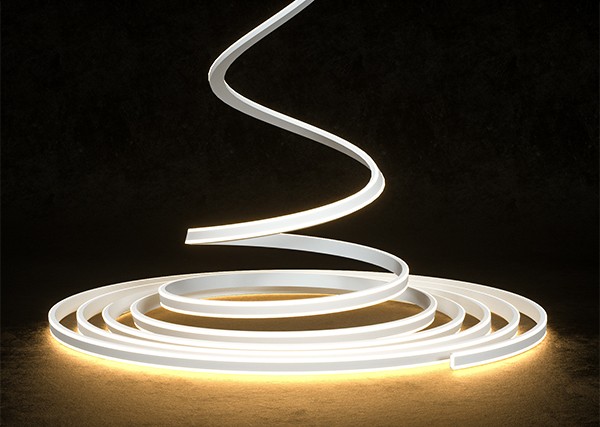

13*5 Silicone Neon Flex
12Vdc

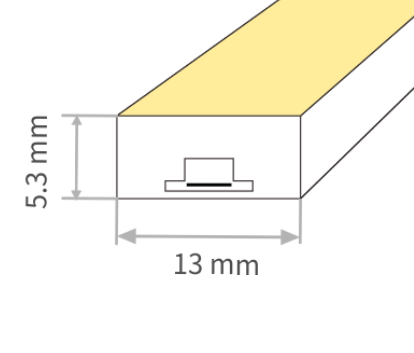

| Model No. | Color | LED Qty | Voltage(V) | Size (mm) | Power /m | LED Type | Mini Cutting Length | IP Grade | CRI |
| CBFN-12R-1305-T0 | Red | 126LED/M | 12vdc | 13x5mm | 11w/m | SMD2835 | 23.8mm | IP67 | >90 |
| CBFN-12Y-1305-T0 | Yellow | 126LED/M | SMD2835 | 23.8mm | |||||
| CBFN-12G-1305-T0 | Green | 126LED/M | SMD2835 | 23.8mm | |||||
| CBFN-12B-1305-T0 | Blue | 126LED/M | SMD2835 | 23.8mm | |||||
| CBFN-12W-1305-T0 | White | 300LED/M6 | SMD2216 | 20mm | |||||
| CBFN-12WW-1305-T0 | W W | 300LED/M | SMD2216 | 20mm |
24vdc
| Model No. | Color | LED Qty | Voltage(V) | Size (mm) | Power /m | LED Type | Mini Cutting Length | IP Grade | CRI |
| CBFN-24R-1305-T0 | Red | 126LED/M | 24vdc | 13x5mm | 11w/m | SMD2835 | 55.5mm | IP67 | >90 |
| CBFN-24Y-1305-T0 | Yellow | 126LED/M | SMD2835 | 55.5mm | |||||
| CBFN-24G-1305-T0 | Green | 126LED/M | SMD2835 | 55.5mm | |||||
| CBFN-24B-1305-T0 | Blue | 126LED/M | SMD2835 | 55.5mm | |||||
| CBFN-24W-1305-T0 | White | 300LED/M | SMD2216 | 40mm | |||||
| CBFN-24WW-1305-T0 | W W | 300LED/M | SMD2216 | 40mm |
Features:
● High light transmittance, environmental protection grade silicone material, integrated extrusion molding process.
● Unique optical light distribution structure design, uniform lighting
surface and no shadow.
● IP67 protection level, salt solution resistance, acids & alkalis,
corrosive gases, fire and UV.
● Excellent toughness, simple and stylish appearance, delicate and unique.
● 3 years warranty, working life ≥30000 hours.
● CE, RoHS, TUV, BIS, CB and LM-80 certified
● LED Neon LED strip is suitable for park roads, playgrounds, shopping malls, building signs, LOGO signage, etc.
Accessories Assamble
Fix:

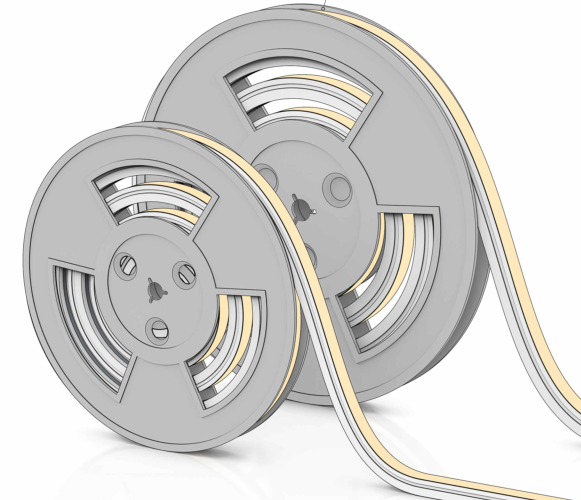

Package
Weight/Carton | 15Kg/carton |
Meter/Carton | 80m |
Package Size/ Carton | 410×410×250mm |
13*5 Silicone Neon Flex
12Vdc
| Model No. | Color | LED Qty | Voltage(V) | Size (mm) | Power /m | LED Type | Mini Cutting Length | IP Grade | CRI |
| CBFN-12R-1305-T0 | Red | 126LED/M | 12vdc | 13x5mm | 11w/m | SMD2835 | 23.8mm | IP67 | >90 |
| CBFN-12Y-1305-T0 | Yellow | 126LED/M | SMD2835 | 23.8mm | |||||
| CBFN-12G-1305-T0 | Green | 126LED/M | SMD2835 | 23.8mm | |||||
| CBFN-12B-1305-T0 | Blue | 126LED/M | SMD2835 | 23.8mm | |||||
| CBFN-12W-1305-T0 | White | 300LED/M6 | SMD2216 | 20mm | |||||
| CBFN-12WW-1305-T0 | W W | 300LED/M | SMD2216 | 20mm |
24vdc
| Model No. | Color | LED Qty | Voltage(V) | Size (mm) | Power /m | LED Type | Mini Cutting Length | IP Grade | CRI |
| CBFN-24R-1305-T0 | Red | 126LED/M | 24vdc | 13x5mm | 11w/m | SMD2835 | 55.5mm | IP67 | >90 |
| CBFN-24Y-1305-T0 | Yellow | 126LED/M | SMD2835 | 55.5mm | |||||
| CBFN-24G-1305-T0 | Green | 126LED/M | SMD2835 | 55.5mm | |||||
| CBFN-24B-1305-T0 | Blue | 126LED/M | SMD2835 | 55.5mm | |||||
| CBFN-24W-1305-T0 | White | 300LED/M | SMD2216 | 40mm | |||||
| CBFN-24WW-1305-T0 | W W | 300LED/M | SMD2216 | 40mm |
Features:
● High light transmittance, environmental protection grade silicone material, integrated extrusion molding process.
● Unique optical light distribution structure design, uniform lighting
surface and no shadow.
● IP67 protection level, salt solution resistance, acids & alkalis,
corrosive gases, fire and UV.
● Excellent toughness, simple and stylish appearance, delicate and unique.
● 3 years warranty, working life ≥30000 hours.
● CE, RoHS, TUV, BIS, CB and LM-80 certified
● LED Neon LED strip is suitable for park roads, playgrounds, shopping malls, building signs, LOGO signage, etc.
Accessories Assamble
Fix:
Package
Weight/Carton | 15Kg/carton |
Meter/Carton | 80m |
Package Size/ Carton | 410×410×250mm |
