CAWG-S960-12W-T0
CASOLED
9405409000

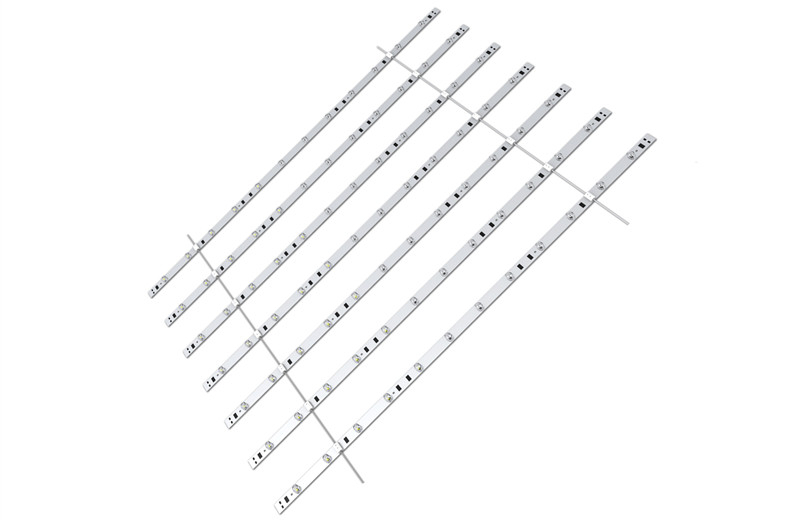

New LED prodcut for advertising, a perfect solution and lighting effect for large light box and commercial lighting.
| Part No. | Color | Dimension | Input Voltage | CRI | Power | Beam Angle | LED Qty | Lumens | IP Rate |
| CAMZ-S960-12W-T0 | White(7000K) | 960*20*7.2mm | 24VDC | ≥75 | 12W | 170° | 12 | 1200lm | IP33 |
Product Description
● Sourced by high output SMD2835, good color conformity and no spot.
● 99.99% gold thread, pure copper bracket coated with silver.
● SDCM≤5 each BIN.
● Special lens design, 170°beaming angle with even light
● Well sealed: anti-dusting, anti-moisture, waterproof, anti-shock.

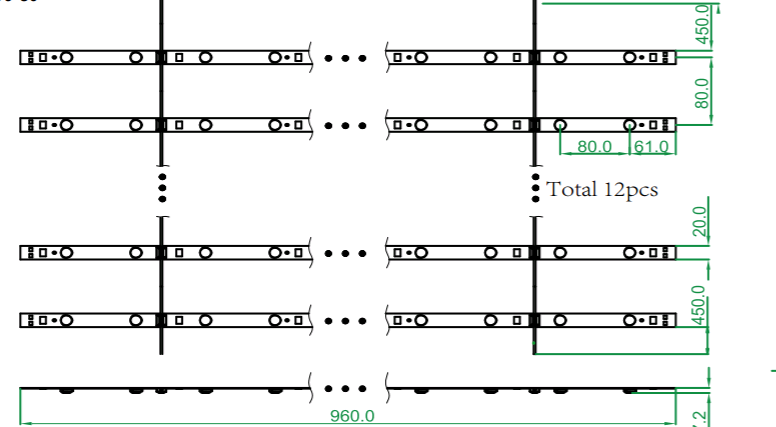

● 12 pcs Max. in a series connection.
● CE, RoHS and certified.
Application
● Best for 3.5-10 cm depth single-sided light box at airports, metros, banks, buildings and shopping malls, etc.

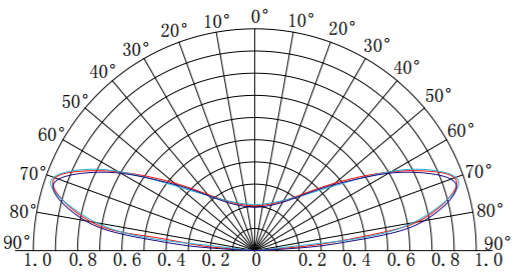

Beam Angle

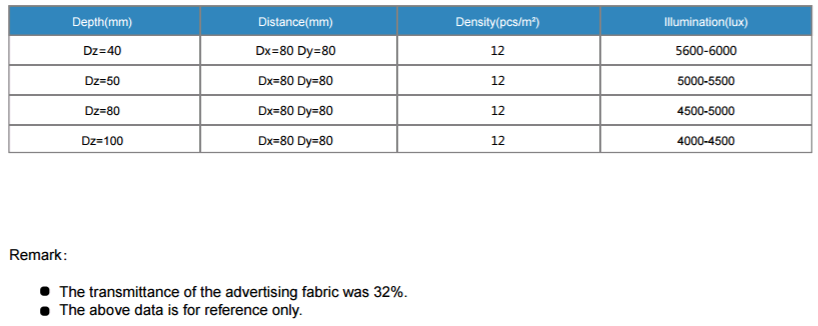

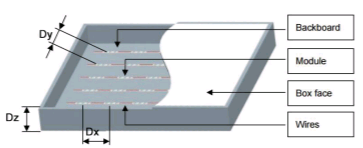

Reference

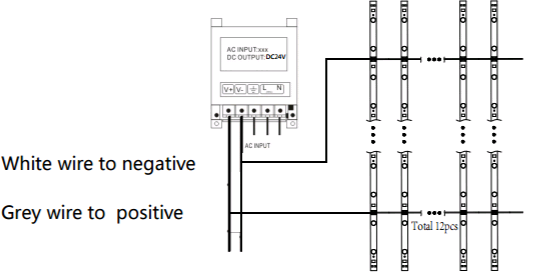

Connection

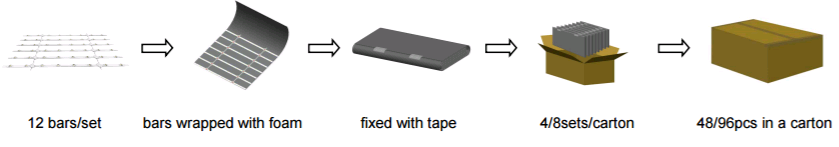

Package:
Weight/Carton | 9Kg/carton |
Quntity | 12bars/set; 4sets/carton |
Package Size/ Carton | 1030*250*175 |
