52*18.5 LED Module: 0.72W

Model Number: CAMZ-S52-2X-T0
Product Size:52*18.5*9.6mm
Working Voltage:DC 12V
Power:0.72W
Luminous Flux:110LM
Beam Angle:170
Availability:
Quantity:
  • CAMZ-S52-2W-T0

  • CASOLED

52*18.5  LED Modules powered by Philips

Part  No.  Color Dimension Input  Voltage Current Power Beam Angle  LED  Qty Lumens IP Rate
CAMZ-S52-W-T0 White 52*18.5*9.6 12VDC ≥75 0.72W 170° 2 110lm IP65

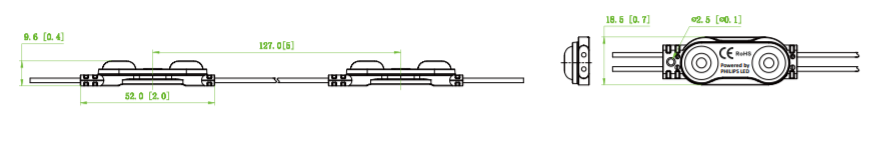

1693998924550

Features:

● Powered by high output PHILIPS LED

● Constant voltage

● Integrated transparent 170°optic lens

● 20 pcs per string

● CE, RoHS,UL,TUV, BIS, CB and LM-80 certified

Application:

● Apply to 6-15 cm depth signs at airports, metros, banks, buildings and shopping malls, etc.


Beam Angle

QQ图片20190421155311

Reference

QQ图片20190422112104

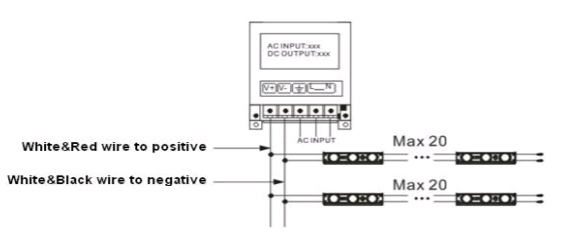

Connection:

QQ图片20190422112146

Packages

* Anti-static bag and  carton

QQ图片20190422112237

Weight/Carton

12Kg/carton

Quntity

1500pcs/carton

Package  Size/ Carton

490×450×220mm
