CAMZ-S66-1W-S3
CASOLED
9405409000

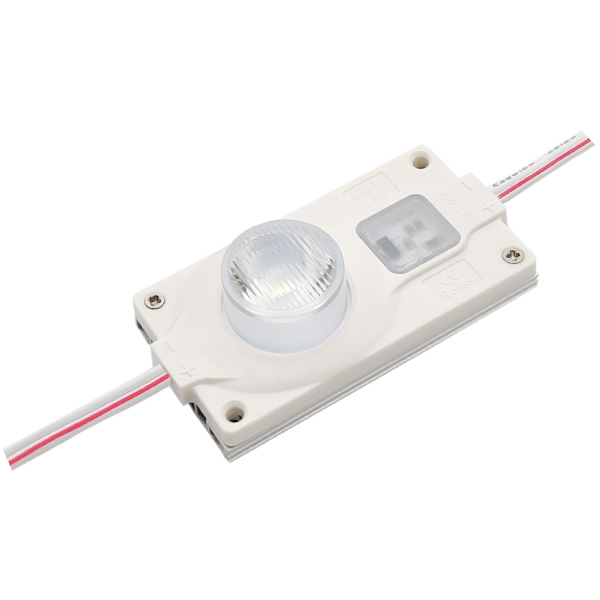

66*33 LED Module 3.5W
| Part No. | Color | Dimension | Input Voltage | CRI | Power | Beam Angle | LED Qty | Lumens | IP Rate |
| CAMZ-S66-1W-S3 | White | 66*33*18mm | 24VDC | 75 | 3.5W | 5*30° | 1 | 310lm | IP65 |
● Powered by high output 3535 LED
● Constant current
● Elliptical 5*30° optic lens
● 10 pcs per string
● CE, RoHS,UL,TUV, BIS, CB and LM-80 certified

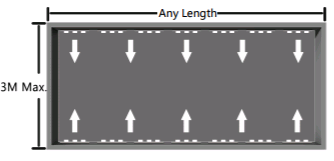

● Light coverage: 0.5-3M
● Apply to 10-20 cm depth double-sided light box. Backlight LED module features a SMD3535 LEDs of light a wide 5*30 degree angle for a Edge-lit double-sided light box.
Beam Angle

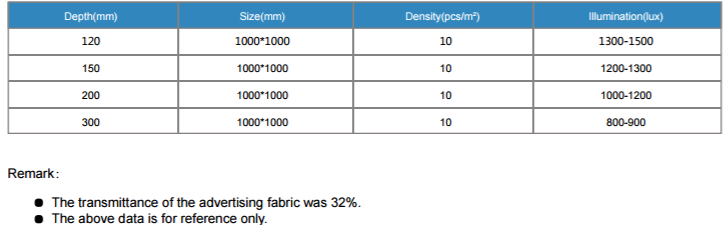

Reference

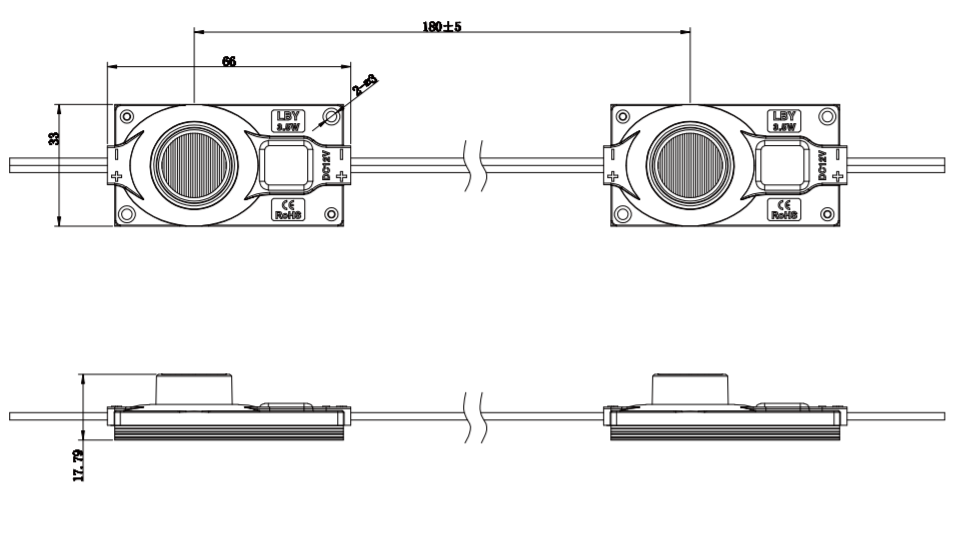

Connection

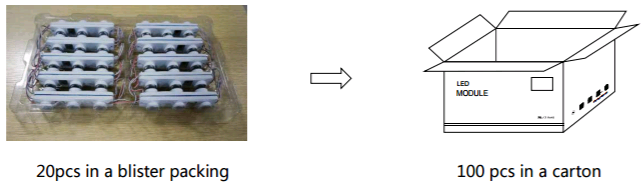

Package
Weight/Carton | 8Kg/carton |
Quntity | 100pcs/carton |
Package Size/ Carton | 415*255*180 |
