CAMZ-S30-2W-T0
CASOLED
9405409000
30*9 2LED SMD2835 LED Module
Part No. | Color | Dimension | Input Voltage | CRI | Power | Beam Angle | LED Qty | Lumens | IP Rate |

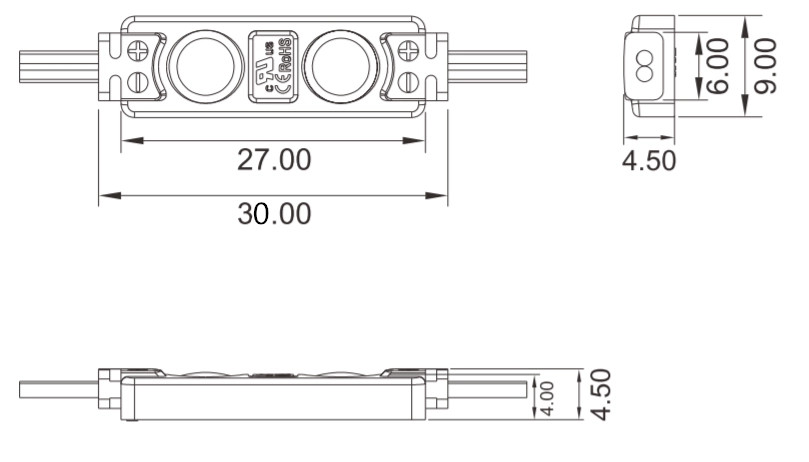

CAMZ-S30-2W-T0 | White | 30*9*4.5mm | 12VDC | ≥75 | 0.32W | 120° | 2pcs | 20lm | IP65 |
1. Features:
Sourced by high output SMD2835, good color conformity and no spot. 99.99% gold thread, pure copper bracket coated with silver. SDCM≤5 each BIN. Protection cover over the LED, 120°beaming angle with even light. Well sealed: anti-dusting, anti-moisture, waterproof, anti-shock. 20 pcs Max. in a series connection. CE, RoHS certified.
3. Applications:
Apply to 3-6cm depth signs at airports, metros, banks, buildings and shopping malls, etc.
*Light source of channel letter
*Back light
*Show window illumination
*Indoors decoration illumination
*Building facade lighting
*Advertising signboard
*Neon replacement

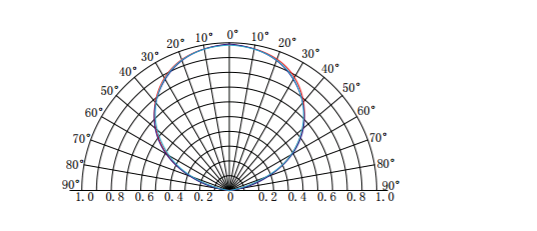

4.Beam Angle:

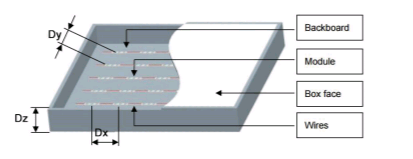

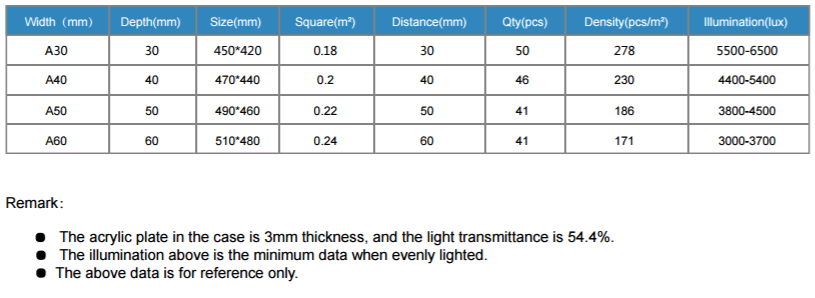

5.Reference

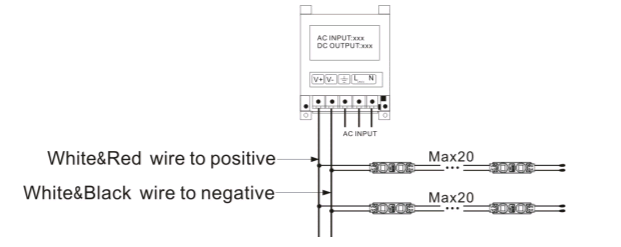

6.Connection

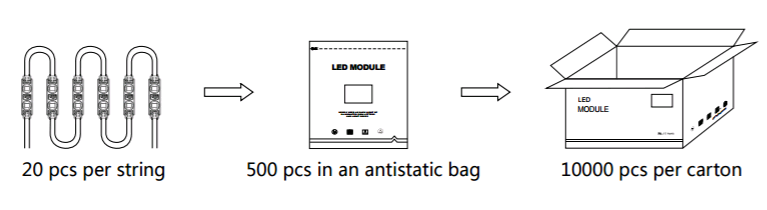

4. Package Details
* Anti-static bag and carton
Weight/Carton | 19.5Kg/carton |
Quntity | 10000pcs/carton |
Package Size/ Carton | 490×450×220mm |
