CAMZ-S40-4X-T0
CASOLED

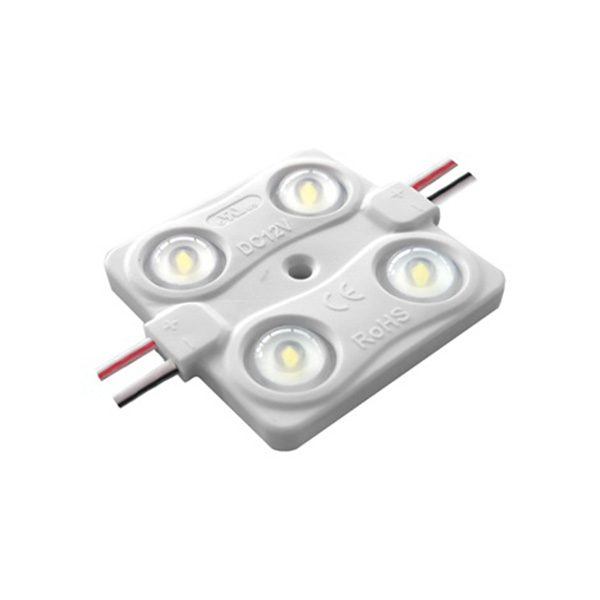

40*36 SMD LED Module
| Part No. | Color | Dimension | Input Voltage | Current | Power | Beam Angle | LED Qty | Lumens | IP Rate |
| CAMZ-S40-4W-T0 | White | 40*36*5.6 | 12VDC | 83MA | 1.2W | 160° | 4 | 110lm | IP65 |
Features
1. Adopting super bright SMD2835, better heat dissipation and longer lifespan.
2. 160°beaming angle and light evenly
3. Well sealed:anti-dusting, anti-moisture, waterproof, anti-shock.
4. CE , RoHS and certified.
Apply to 6-20cm depth signs at airports, metros, banks, buildings and shopping malls, etc.
Beam Angle:

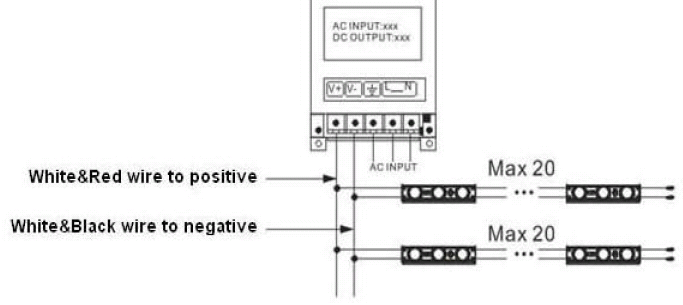

Connection
Packages
Weight/Carton | 15.5Kg/carton |
Quntity | 1000pcs/carton |
Package Size/ Carton | 490×450×220mm |
40*36 SMD LED Module
| Part No. | Color | Dimension | Input Voltage | Current | Power | Beam Angle | LED Qty | Lumens | IP Rate |
| CAMZ-S40-4W-T0 | White | 40*36*5.6 | 12VDC | 83MA | 1.2W | 160° | 4 | 110lm | IP65 |
Features
1. Adopting super bright SMD2835, better heat dissipation and longer lifespan.
2. 160°beaming angle and light evenly
3. Well sealed:anti-dusting, anti-moisture, waterproof, anti-shock.
4. CE , RoHS and certified.
Apply to 6-20cm depth signs at airports, metros, banks, buildings and shopping malls, etc.
Beam Angle:
Connection
Packages
Weight/Carton | 15.5Kg/carton |
Quntity | 1000pcs/carton |
Package Size/ Carton | 490×450×220mm |
