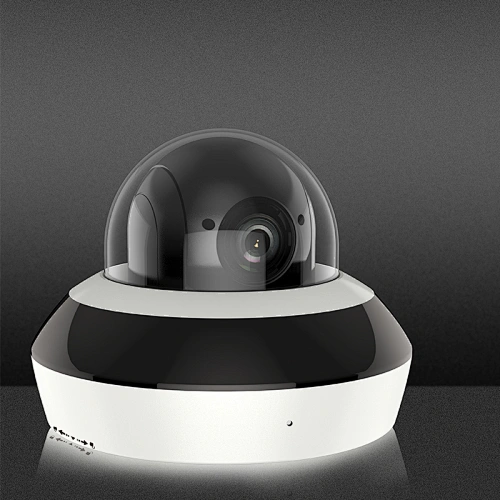

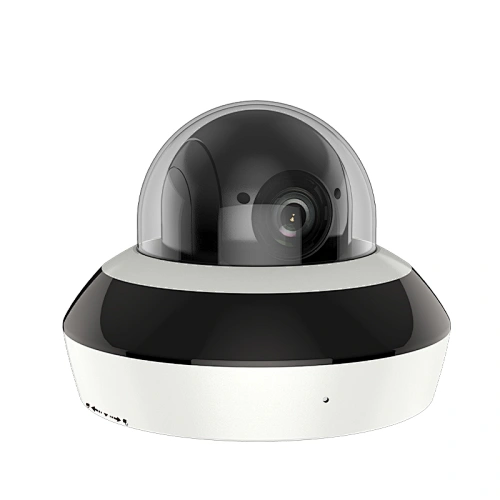

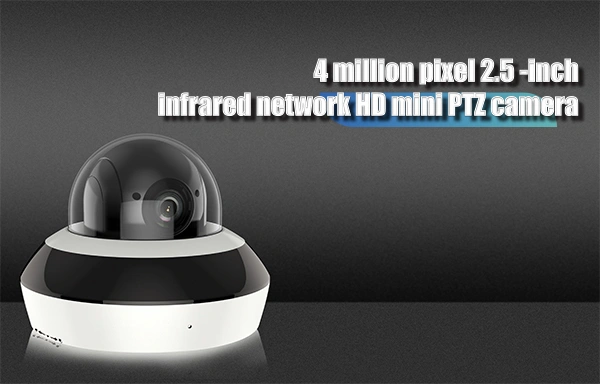

CA-HDC-02
CASOLED
-Support maximum 2560 × 1440@30FPS HD screen output
-Support H.265 efficient compression algorithm, which can save storage space greatly saving storage space
-Support ultra -low illuminance, 0.005lux/F1.5 (color), 0.001LUX/F1.5 (black and white), 0 lux with IR
-Support 4 times optical change, 16x numbers change
-Adopt high-efficiency infrared offices, low power consumption, and the farthest irradiation distance can reach up to 20m
-Support smart detection functions such as regional invasion detection, cross-border detection, and mobile detection.
-Support the renewal function of the network to ensure that the video is not lost, and the second intelligent retrieval, analysis and concentration playback with
SMART NVR implementation of event video
-Support wide dynamic range up to 120DB, suitable for reverse light environment monitoring
-Support 3D digital noise reduction, strong light suppression, Smarter
-Support 355 ° horizontal rotation, the vertical direction is 0 ° -90 °
-Support 300 presets
-Support timing grasp and event grasp function
-Support regional exposure and regional focus function
-Support Wi-Fi function
-Built-in microphone, supports 1 audio input and 1 audio output at the same time
-Support Haikang SDK, open network video interface, ISAPI, GB/T28181, E family protocol and fluorite access
-IP66, strong anti-interference ability, suitable for harsh electromagnetic environment, compliance with GB/T17626.2/3/4/5/6 level four standards
-Micro SD/Micro SDHC/Micro SDXC card storage supports maximum 256GB of Micro SD/Micro SDHC
| Sensor type | 1/2.8＂ progressive scan CMOS |
| Maximum resolution | 2560×1440 |
| Minimum illumination | Color：0.005Lux @ (F1.5，AGC ON)；White/Black：0.001Lux @(F1.5，AGC ON) ；0 Lux with IR |
| Shutter | 1/1s-1/30,000s |
| Day and night conversion mode | Automatic ICR color turning black |
| Zoom | 4x optical changes, 16x numbers double |
| Slow/shutter | support |
| Main code flow frame rate resolution | 50 Hz:25 fps (2560×1440,1920×1080,1280×960,1280×720), 60 Hz: 30 fps (2560×1440, 1920×1080,1280×960,1280×720) |
| Subclicate frame rate resolution | 50Hz:25fps(704×576,640×480,352×288) 60Hz:30fps(704×480,640×480,352×240) |
| Video compression standard | H.265/H.264/MJPEG |
| H.264 | Baseline/Main/High Profile |
| SVC | support |
| ROI | support |
| Focal length | 2.8-12mm |
| Venue angle | 97-32 degrees (wide-angle-Wangyuan) |
| Focus mode | Automatic/manual/semi-automatic |
| Maximum aperture | F1.5 |
| Optical change speed | About 2 seconds |
| Fill light type | Infrared |
| Light lamp distance | 20M |
| Anti -lighting overexposure | support |
| Infrared wavelength range | 850nm |
| Audio compression standard | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio compression code rate | AAC：16kbps，32kbps，64kbps, MP2L2：32kbps，40kbps，48kbps，56kbps，64kbps，80kbps，96kbps，112kbps，128kbps，144kbps，160kbps，192kbps |
| Audio sampling rate | AAC：16 kHz，32 kHz，48 kHz MP2L2：16 kHz，32 kHz，48 kHz PCM：8 kHz，16 kHz，32 kHz，64 kHz |
| Environmental noise filter | support |
| Power supply | DC12 V, Maximum Power Consumption: 11.2 W |

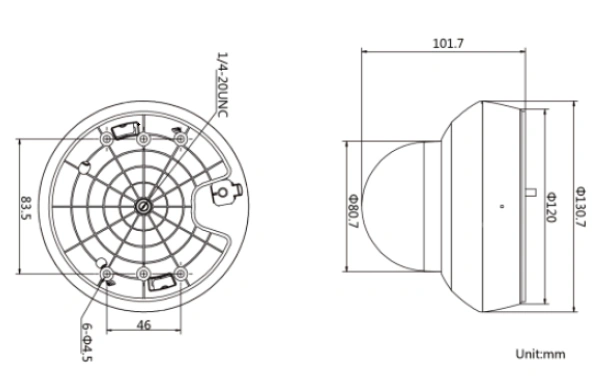

| Size | Φ130.7 × 101.7mm |
| Weight | About 530g |
| Work temperature and humidity | -20 ℃ -60 ℃; humidity is less than 90% |
| Universal function | Mirror, password protection, watermark technology, IP address filtering |
| Horizontal | 0 ° -355 ° |
| Vertical | 0 ° -90 ° |
| Horizontal speed | 0.1 ° -100 °/s, the speed can be set; level preset point speed: 100 °/s |
| Vertical speed | 0.1 ° -100 °/s, the speed can be set; vertical preset speed: 100 °/s |
| Proportional change | support |
| Preset point number | 300 |
| Preset point video freezing | support |
| Watch function | Preset |
| 3D positioning | support |
| Acting corner information display | support |
| Timing task | Preset point/ball machine restart/ball machine verification |
| Power off memory | support |
| Encryption | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Wireless standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz~2.4835 GHz |
| Channel bandwidth | support 20/40 MHz |
| Modulation | 802.11b: CCK, DQPSK, DBPSK 802.11g: OFDM/64-QAM,16-QAM, QPSK, BPSK 802.11n : OFDM/64-QAM、16-QAM、QPSK、BPSK |
| Transmission rate | 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n :mcs0~msc7 |
| Supporting agreement | IPv4/IPv6, HTTP, HTTPS,802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour, WebSocket, WebSockets |
| Maximum flow road number | Up to 20 roads |
| Interface Protocol | Software integrated open API, open network video interface, ISAPI, Haikang SDK, third-party management platform access, GB/T28181 protocol, ISUP, E home protocol, supporting fluorite access support |
| User Management | A maximum of 32 users, divided into 3: administrator, operator and ordinary users |
| Safety management | Authorized username and password, and MAC address binding, https encryption, IEEE 802.1X network access control, IP address filtering |
| Network Storage | NAS (NFS, SMB/ CIFS) |
| Browser | IE10-11, Chrome57+, Firefox52+, Safari11+ |
| Image parameter switching | support |
| Image settings | Saturation, brightness, contrast, sharpness |
| Day and night conversion method | During the day, and night, automatic, timing switching |
| Wide dynamic | 120db ultra-wide dynamics |
| Signal -to -noise ratio | ＞ 52DB |
| Foggy | support |
| Image enhancement | Backlight compensation, strong light suppression, 3D digital noise reduction |
| Privacy cover | Support up to 24 privacy covers, each scenario supports up to 8 |
| Regional focus | support |
| Area exposure | support |
| Network Interface | RJ45 network port, adaptive 10M/100M network data |
| SD card extension | Support Micro SD/Micro SDHC/Micro SDXC card, with a maximum support of 256GB |
| Built -in microphone | 1 built -in microphone can clearly receive sounds within 5m radius |
| Audio | 1 Audio audio input, audio peak: 2-2.4V [p-p], input impedance: 1kΩ ± 10% 1 Audio audio output, linear level, impedance: 600Ω |
| Reset | support |
| Power Output | DC12V, current ≤60mA |
| Ordinary incident | Equipment abnormal detection, mobile detection, blocking alarm |
| Smart event | Regional intrusion detection, cross-border detection, entering regional detection, leaving regional detection, leaving objects to detect, items obtained detection, audio abnormal detection |
| Alarm linkage | Support email linkage/upload center/upload FTP, SD card, NAS |
