CA-IVP-01
CASOLED
-HD visual intercom.
-Remote control switch.
-Query the device call records.
-The video interface button name is custom-defined.
-Video linkage multi-screen monitoring monitoring function.
-Built-in Wi-Fi and Bluetooth, can access the wireless network, paired Bluetooth headset or mobile phone, allowing users to completely get rid of the desk and greatly improve flexibility and use it as video intercom doorbell. At the same time, mobile terminals can also provide mobile phones / PADs and other mobile terminals to provide wireless hotspots.
-Support HDMI secondary flow input and HDMI dual-screen extension; support USB 2.0 extension.
-Using a strong hardware kernel and the latest audio and video processing technology, we support Opus coding and 1080P HD dual-stream, providing users with an immersive HD video communication experience.
-Instead of the physical keyboard, the whole machine only has multi-functional hands-free keys, using a high-definition multi-touch capacitive screen, like a smartphone experience, while providing an adjustable bracket and adjustable camera to bring a comfortable experience.
-HD touch screen: 10 inches, 1280 * 800 pixel IPS high-definition screen, multi-touch screen, creating a smoother operation experience
-Magnetic induction design: fork spring, home keys use, higher reliability and safer camera: 8 million pixels, 210 degrees flip, wide-angle camera, backlight imaging

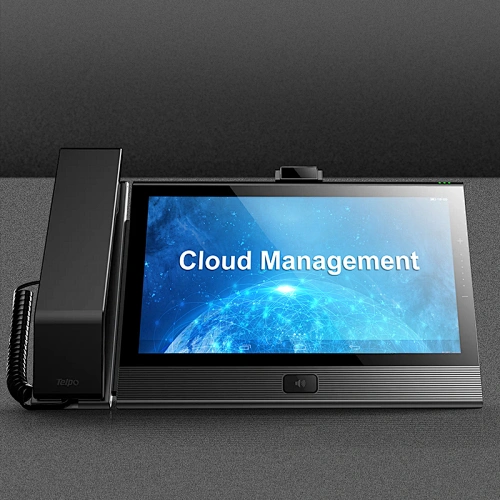

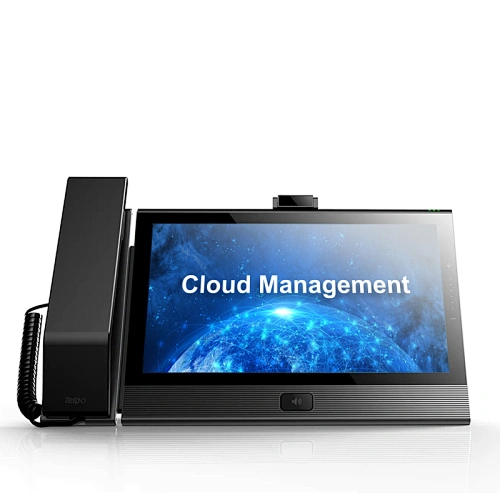

This product is a central management machine applied in IP visual intercom, can be used with alarm / intercom server, can also be used independently, supports LAN and Internet use, with visual intercom, remote control, automatic queuing, remote call processing, and other functions. Widely used in intercom, alarm, parking lot, government and enterprise, hotel, real estate, medical treatment and other scenarios.

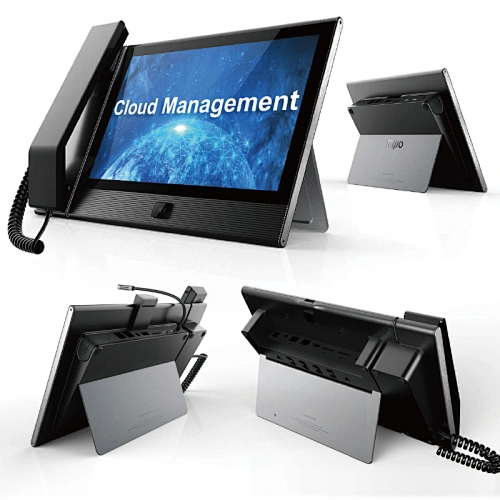

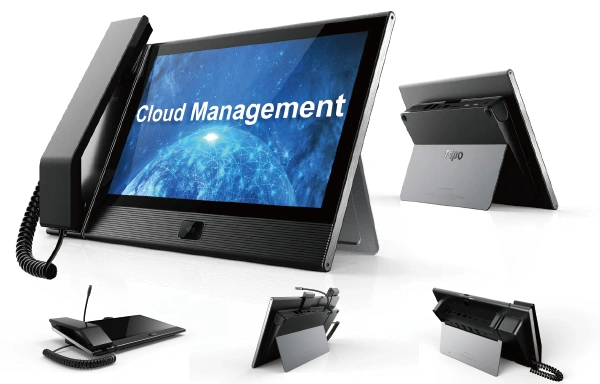

"Visualization cloud head BS-YT 10"is a high-end desktop intercom terminal that integrates audio and video calls and hands-free calls. The appearance is simple and generous, with a 10.1-inch 1280 * 800 multitouch IPS capacitive screen and an 8-megapixel wide-angle HD camera that can flip to 210 degrees.
| Parameter | Visualize UNTZ BS-YT10 | ||
| System Configuration | Operating System | Android 7.1 | |
| CPU Function | M SM 8953 Scheme, 8 cores | ||
| FLASH Storage | 16GB | ||
| RAM Internal Storage | 2GB | ||
| Display Screen | 10.1-inch, 1280x800 pixels, IPS touch screen | ||
| Camera | 8 megapixels, support front and forth flip, adjustable angle(relative to screen-30 degrees ~ + 180 degrees) | ||
| Phone Angle Adjustment | 10 to 70 degrees adjustable | ||

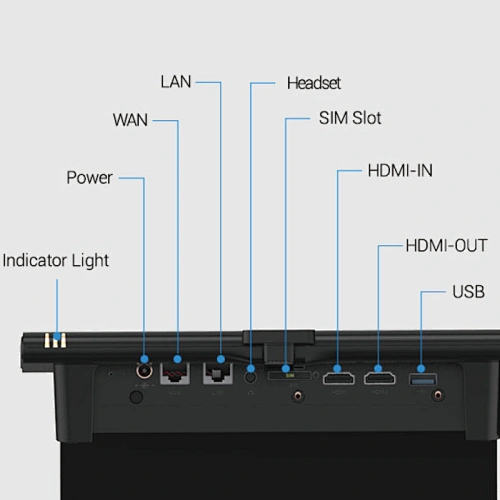

| Network Port Interface | Dual network port adaptive 10M / 100M / 1000M; support POE | ||
| WLAN | 2.4G,IEEE802.11b/g/n, Supporting the AP and WLAN functionality | ||
| Bluetooth | BT 2.1+EDR /3.0/4.1LE | ||
| Memory Card | 1, supporting the Mi croSD (TF) | ||
| HDMI Joggle | 1*HDMI -in ，1*HDMI -out | ||
| USB Joggle | 1, USB2.0, can support U disk, headset, keyboard, mouse | ||
| Handle Interface | RJ -9 | ||
| Video Features | Networking Protocol | SIP 、TCP /IP， SIP， SDP，UDP，RTP， RTCP ， DHCP，DNS， HTTP ， HTTPS， SNTP，XCAP， IPv 4， IPv 6 | |
| Audio Coding | Decoded: Ga, Gu, AAC, AAC +, MP3, and AMR.711.711 | ||
| Video Codec | Ending / Decode: H.264、VP 8 | ||
| Video Resolution | QVGA (320 x 240) 、CIF (352x 288) 、VGA (640x480) 、 4CIF (704x 576) 、 720p (1280x 720) ，1080p (1920 x 1080) | ||
| Power Adapter | Input:AC 100~220V Output:DC12V/1.5A | ||
| Dimension | 300mm *200mm *72mm | ||

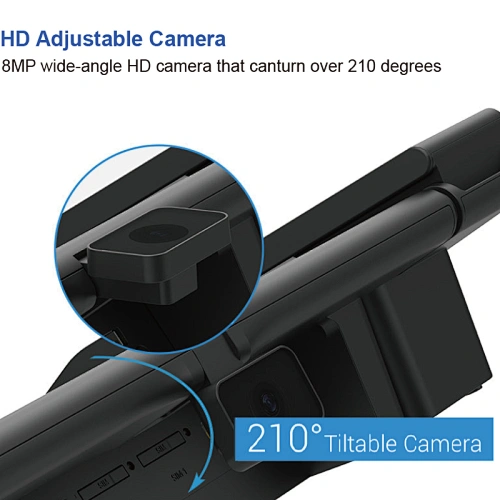

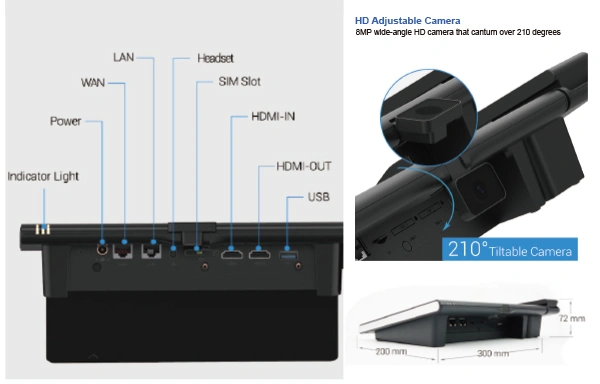

HD Adjustable Camera
8MP wide-angle HD camera that can turn over 210 degrees
Intercom With Video System Operating Instruction
1. Please keep the machine away from the strong magnetic field, which may damage the machine.
2. When using, do not let the machine fall, or rub against hard objects, otherwise it may cause the machine surface to be scratched, the battery to fall off, data loss or other hardware damage, which may cause the machine to fail to start.
3. Do not expose the equipment to a wet environment or rain. If the equipment is flooded or wet, it may cause equipment failure or even be unable to be repaired.
4. Do not clean the machine with chemical agents or cleaning agents, which will damage the machine's surface and corrode the paint.
5. Don't shut down the power suddenly during software upgrades or uploads and downloads, or it may cause data loss or program error.
6. It is forbidden to use the overloaded power supply, bend the power cord forcibly, or squeeze the power cord with heavy objects, so as not to cause heat and fire.
7. It is forbidden to unplug the power supply with wet hands to prevent electric shock.
8. Some films, music and pictures may have copyright. Playing these files without permission will violate the copyright law.
9. When the use of wireless devices is prohibited or the use of devices will cause interference or danger, please don't turn it on.
10. All wireless devices may be interfered with, thus affecting the performance.
11. Please observe any relevant restrictions. Wireless devices can interfere with aircraft. If you use this machine on the plane, please consult the airline first. You must be very careful when using electronic equipment during the flight.
12. Do not use this equipment in the gas station. Do not use this equipment near fuel or chemicals.
13. Please observe any relevant restrictions. Do not use this equipment in the place where the blasting operation is carried out.
14. Only professional maintenance personnel can install or repair this equipment.
15. Please use the original accessories and batteries. Do not use products that do not match.
16. This equipment is not waterproof. Please keep it dry.
17. Back up the important information stored in this equipment or keep a handwritten record to prevent it from being lost.
18. When connecting other devices, please read the user manual of the device for detailed safety instructions. Do not connect products that do not match.
19. If the actual settings and usage of this product are inconsistent with this manual due to the loss of firmware, please contact the supplier.

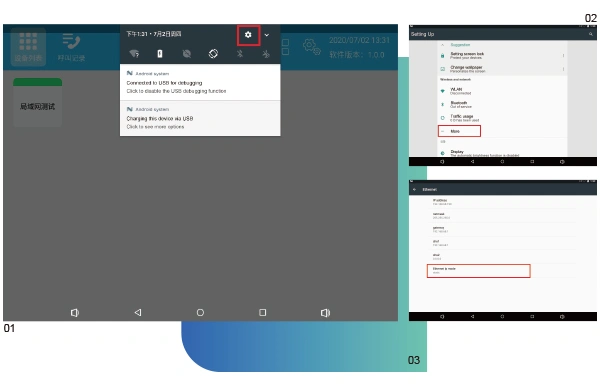

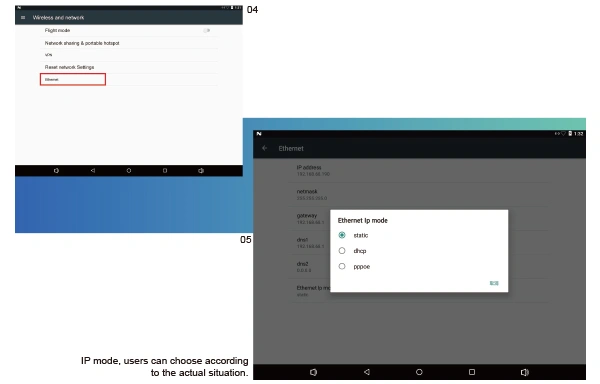

Note: Make sure the management host network is normal before switching modes.
--------------------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------------------

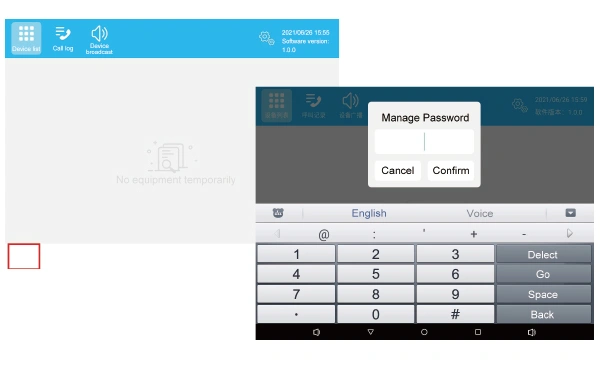

Clear all login information and click the login button five times in a row
Click the login button 5 times and it will pop up.
Enter the password (month+days, for example,August 16, 2012,
the password is 6180, and after confirmation, the management
machine will be restarted, and after the restart, it will
switch to LAN mode.
