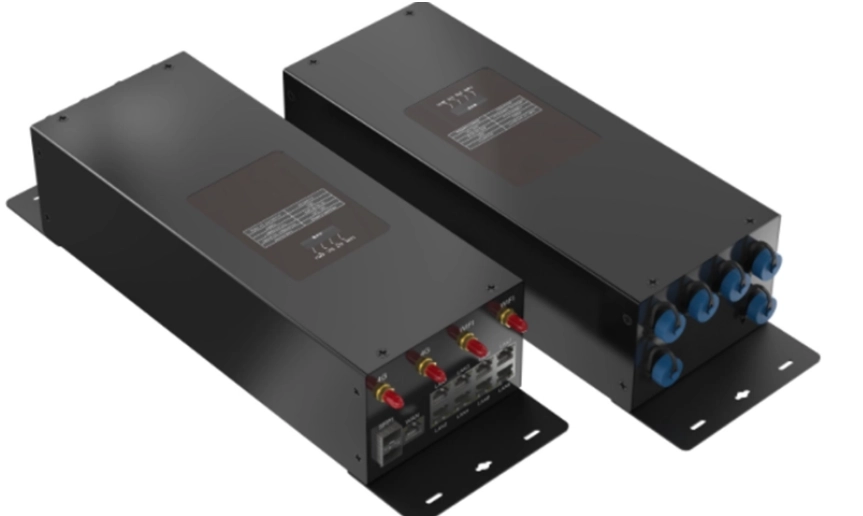

IoT-8QM-LC
CASOLED
Gateway for Smart Light Pole
IoT-8QM-LC is the third-generation smart street light gateway independently developed and produced by Gebosun®.
It is a new type of outdoor remote center specially developed and manufactured to meet the needs of smart end users for remote intelligent control of equipment. The control equipment is upgraded and improved on the basis of the previous generation smart gateway.
The gateway has a built-in single lamp controller with 4Gcat.1 communication, stable signal, 99.9% online rate, high integration, reserved multi-function interface, can be connected to More sensors and devices can use 2G/3G/4G network, Ethernet network and WIFI network to provide users with long-distance big data transmission function, connect to the cloud, control power supply output, strong edge computing capability, reserved interface, for two Secondary development, more powerful functions provide stable support.
This product integrates a 2.4GHz IEEE802.11b/g/nWI-FI transceiver and is equipped with MediaTek MT7621AT's dual-core 880MHz CPU, 4GBEMMC flash memory, 8 high-speed Ethernet ports EthernetPHY), HNAT memory accelerator, and multiple general purpose I/O With Linux (Ubuntu14.04) as the software support platform, it also provides 1*RS485 interface, 8 Ethernet LANs, 1 Ethernet WAN and 2 WIFI interfaces, 2 Gigabit fiber ports, 1 AC220V output, 2 DC12V/3A output, 1 channel DIM output, can be connected to a variety of Ethernet devices, serial devices, WIFI devices, etc. at the same time, to achieve transparent data transmission and routing functions.
The design of BS-IoT-8QM-LC fully considers versatility and stability. Based on the technical architecture design of the Internet of Things, it can meet the data collection and intelligent control of smart terminal equipment, and at the same time has a certain degree of scalability, which is convenient for existing hardware. Implement new device access.
| Specification | Parameters | Remark |
| Model | IoT-8QM-LC | Gateway(Smart Light Pole) |
| Single light controller | 4Gcat.1 | Built-in single light controller |
| Sensor | temperature sensor, humidity sensor | built-in |
| Network for mat | 1WANport | 10/100/1000 adaptive |
| 4G | 4G/3G/2G full Netcom | |
| 2-way fiber port | Support ring network | |
| Power input | scope | 110~265V/30A |
| Waterproof level | IP65 | IP65 |
| Size | L×W×H(mm) | 375mm*113mm*81mm |
| Temperature: Storagetemperature-40~85 Workingtemperature-25~70 | ||
| 4G | Working frequency | FDD LTE：B1/B3 |
| TDD LTE：B38/B39/B40/B41 | ||
| TDSCDMA：B34/B39 | ||
| CDMA2000 | ||
| 1x/EVDO：BC0 | ||
| GSM：900/1800MHz | ||
| Transmission rate | LTE-FDD：Max100Mbps(DL)Max50Mbps(UL) | |
| LTE-TDD：Max61Mbps(DL)Max18Mbps(UL) | ||
| SCDMA-TD：Max4.2Mbps(DL)Max2.2Mbps(UL) | ||
| CDMA：Max5.4Mbps(DL)Max14.7Mbps(UL) | ||
| GPRS：Max85.6Kbps(DL)Max85.6Kbps(UL) | ||
| Transmit power | FDDLTE：23dbm±2db | |
| TDDLTE：23dbm±2db | ||
| TDSCDMA:24dbm+1/-3dbGSM | ||
| 900Mhz：33dbm±2dbmGSM | ||
| 1800Mhz：30dbm±2dbm | ||
| Receive sensitivity | FDDB1:-97dBm(20M) | |
| FDDB3:-96dBm(20M) | ||
| TDDB38:-94dBm(20M) | ||
| TDDB39:-94dBm(20M) | ||
| TDDB40:-94dBm(20M) | ||
| TDDB41:-93.5dBm(20M) | ||
| TDSCDMAB34:-110dbm | ||
| TDSCDMAB39:-110dbm | ||
| CDMABC0:-108dbm | ||
| GSM900:-110dbm | ||
| GSM1800:-109dBm | ||
| WIFI | Frequency band | SupportIEEE802.11b/g/n |
| Bandwidth | Upto300Mbps | |
| Power | 20dbm | |
| System | CPU | Marvell88F3720 ARMA53 Dual Core 1Ghz |
| RAM | 1GB | |
| FLASH | 4GBEMMC | |
Product function
·Built-in 4Gcat.1 single lamp controller, the equipment online rate is as high as 99.99%, with great stability and reliability
·Support WIFI, 4G, Gigabit Ethernet port, Gigabit fiber port to connect to Ethernet in various ways.
·Equipped with 2 optical fiber interfaces, with two-layer networking capability, suitable for ring and interactive chain networking scenarios. In the case of insufficient network ports, the number of network ports can be increased by adding switching communication components.
·Support three Netcoms, compatible with 2G3G4G networks of China Telecom,China Mobile and China Unicom.
·Support Microsim card, adopt anti-drop mechanism.
·Wired and wireless backup each other to ensure normal and stable data transmission, intelligently switch network backup, store data offline when the network is disconnected, and resume data transmission after the network is restored.
·Powerful WIFI function, support AP, STA, Repeater mode to switch freely.
·Rich protocols, easy to connect, transparent data transmission, MODBUS RTU to TCP/IP, MQTT. Support active polling of MODBUS devices in different address segments, making the operation easier.
·Using industrial-grade high-speed 4G wireless communication module, equipped with 32-bit high-performance processor, the information collected by the front end is more timely and accurate.
·Industrial design, aluminum alloy shell, in the face of various outdoor environments, industrial environments and strong interference, it can work stably 7X24 hours without interruption.
Precautions
Please read this product manual before use,if you haveany questions,please consult our company's engineers for technical support. When using the equipment, be sure to use strong magnetic fields and keep it insulated from other objects.
When replacing the SIM card,be sure to turn off the power before proceeding.

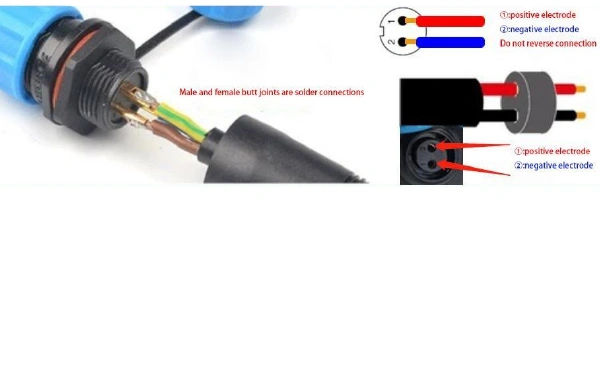

Smart cloud box wiring attention

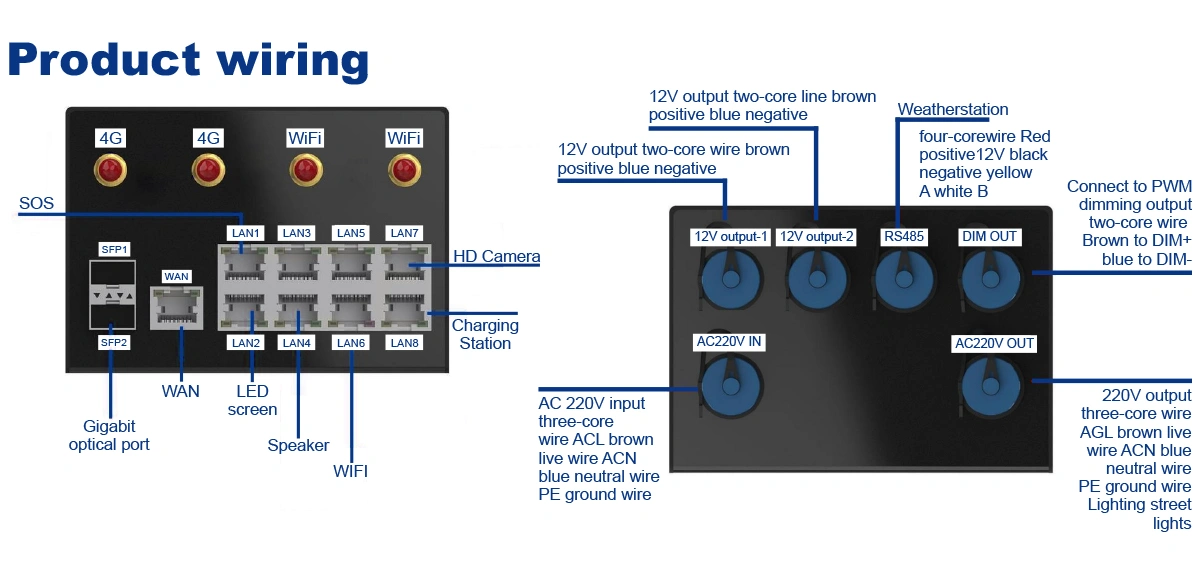

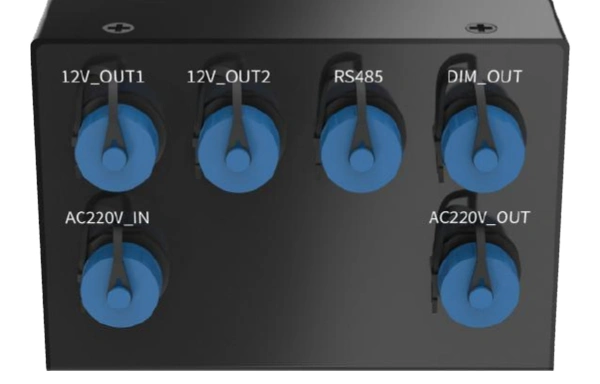

Product Interfaces
| channel AC220V input | AC220V power supply(110~265V) |
| 2 channels DC12V output | Provide12V output to corresponding equipment; remote control switch,current detection |
| 1 channel AC220V output | Provide 220V output to corresponding equipment; remote control switch,current detection |
| 1 RJ45WAN port | External network entrance,10/100/1000Mbps adaptive |
| 8-way RJ45LAN port | Communication network port,10/100/1000Mbps adaptive |
| 4-way antenna interface | 4G full Netcom SMA sucker antenna,WIFI antenna, GPS antenna |
| 2 Gigabit fiber ports | 1 input and 1 output,support single-mode,multi-mode fiber, support ring,chain and other network topologies |
| 1 channel RS485 interface | Access to equipment with 485 interface |
| 1 channel DIM interface | Single light controller to adjust light brightness |
