CA-ISC-01
CASOLED

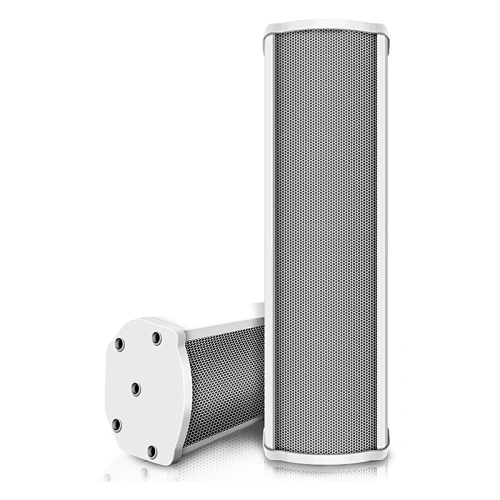

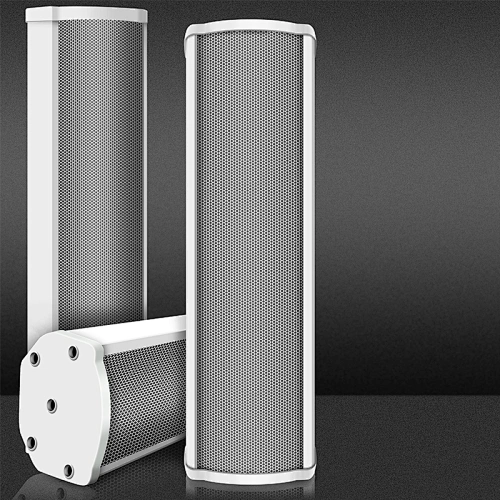

IP sound column speaker system networking through Internet/WAN. Changing the traditional LAN networking mode, the audio import is convenient and fast, and the functions of high-definition video, two-way intercom, audio and video recording, electronic map display, and remote control of mobile phone APP for broadcasting are managed by different levels of authority. It is suitable for shopping malls, supermarkets, school classrooms, parks, outdoor homes, village broadcasts, companies and enterprises, unattended parking lots and other venues. Installing this speaker column makes the smart pole price more cost-effective.
| Processor | operating system | rated power |
| High-performance embedded SOC processor | Embedded LINUX operating system | 30W |
| video compression | audio input | audio output |
| H.264/30FPS | Built-in high-sensitivity omnidirectional microphone | Built-in speaker+1×LINE OUT |
| Compression standard | Compression rate | acoustic fidelity |
| G.711、G.713、GSM、PCM | 32KBPS/8KBPS/64KBPS | ﹣30°C~70°C |
| ethernet | network protocol | Wangkou |
| 10M/100M adaptive | TCP/IP 、DNP | 10/100M adaptive Ethernet port |
| Linkage interface | Power Supply | power consumption |
| 3. | DC 12V 2A | ≤30W |
| Appearance size | acoustic fidelity | |
| 380mm*110mm*100mm | Professional echo cancellation and noise suppression | |
· Support LAN, Internet and 4G hybrid networking (optional)
· Real-time broadcast, scheduled broadcast and file broadcast.
· Text-to-speech broadcasting and recording broadcasting
· Time-sharing broadcast and alarm broadcast
· Support video linkage (optional)
· IO external contact broadcasting is supported
· Support linkage output
· High-quality loudspeaker
· Spray-painted aluminum alloy shell, car paint process, no rust and
more waterproof.
· IP network architecture, spanning network segments and routes
· Monitoring function (camera can be installed)
· Column speaker broadcast call function
· APP remote control, broadcasting
· Shopping Mall: Make customers happy shopping
· Home: Make your home more comfortable and warm
· School/Classroom: Supports periodic ringtone/gymnastics play
· Village broadcast: Large volume, remote control, wide-coverage, durable
· Outdoor Park: Wide coverage and durable for outdoor large-scale activity
· Enterprise/Company: Suitable for playing music or holding meetings.
Avoid internal water accumulation, increase the service lifespan effectively

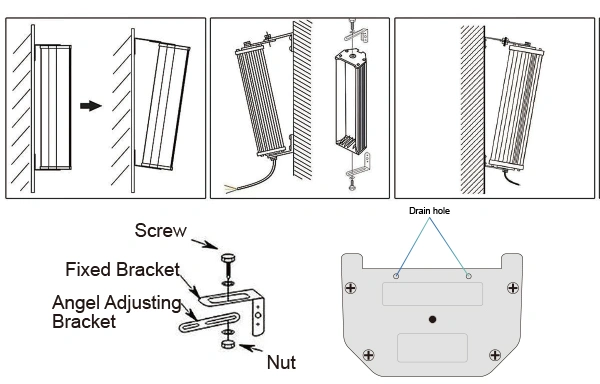

1. Install two φ8MM screws in an appropriate position, install the bracket and fix the speaker column according to the figure below. Extend the upper bracket with the attached accessories if necessary, so as to adjust the depression Angle of the sound column;
2. Connect the audio cable;
3. Adjust the Angle of the column speaker and check if the installation is firm and reliable.
