Model:
CA-SWS-01
Brand:
CASOLED

Product Description

System parameters

●Stability: less than 1% during the sensor life cycle

●Response time: less than 30 seconds

●Warm-up time: 30 seconds (SO2NO2COO3 3 hours)

●Working current: DC12V≤40mA(HCD6815)-DC12V≤125mA(HCD6820)

●Power consumption: DC12V≤0.5W(HCD6815); DC12V≤1.5W(HCD6820)

●Life: Except for SO2NO2COO3PM2.5PM10 (1 year in normal environment, high pollution environment is not guaranteed), the life span is not less than 3 years.

●Output: RS485, MODBUS communication protocol

●Shell material: ASA engineering plastics

●Working environment: temperature -30～70℃, working humidity: 0-100%

OVERVIE

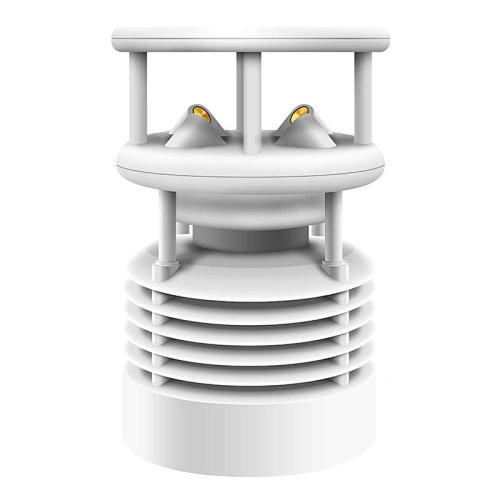

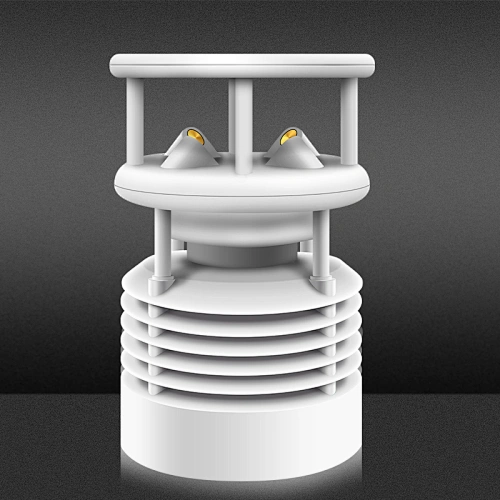

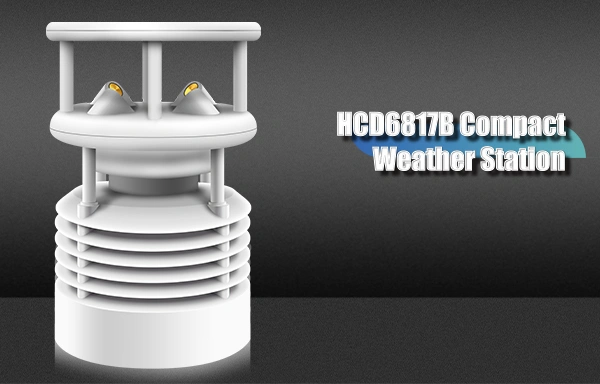

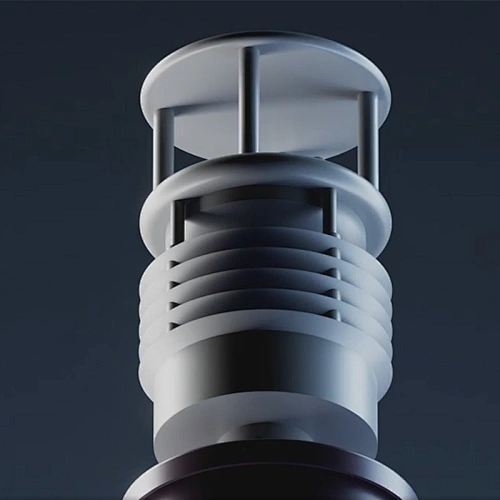

HCD6817B is innovatively realizes the meteorological standard parameters （T、RH、P、WD、WDIR、PM2.5/10、Noise）through a highly integrated structure, which can realize the 24-hour continuous online monitoring of outdoor meteorological parameters, and output the parameters to the user at one time through the digital communication interface.

APPLICATION

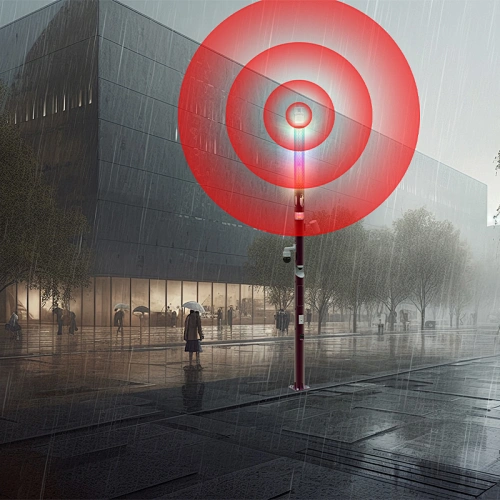

HCD6817B is used for the construction site construction, city roads, residential environment of makings, meteorology, the real time data such as video monitoring system.It is based on the environmental protection department of the GB 3095-2012 and GB 3096-2008 and can be real-time monitoring and control effectively for site area dust through wired or wireless way

TECHNICAL SPECIFICATION

Measture item	Principle	Range	Resolution	Accuracy
Atmospheric temperature	Energy gap method	-40-60 ℃	0.01 ℃	±0.3 （ V=25 ℃）
Atmospheric humidity	Capacitance method	0-100%RH	0.01%	±3%RH （ 10%-80%,No condensation ）
Atmospheric pressure	Piezoresistive	500-1100hPa	±0.5hPa （ 0-30 ℃）（ 950-1100hPa ）	0.1hPa
Wind speed	Ultrasonic	0-60m/s	± （ 0.3+0.03V ） M/S ； V≤30M/S ± （ 0.3+0.05V ） M/S; V≥30M/S	0.01m/s
Wind direction	Ultrasonic	0-359.9°	±3 ° （ When wind speed = 10m / S ）	0.1°
PM2.5	Laser way	0-1000μg/m³	1μg/m³	±10% （ <500μg ）
PM10	Laser way	0-1000μg/m³	1μg/m³	±10% （ <500μg ）
Noise	Electret capacitance	30-130dB	0.1dB	±1.5dB
Supply	12-24VDC, solar power
Output	RS485(Modbus)
Fixed form	A) Sleeve fixed ； B)Flange adapter fixed
Power consumption	＜ 1W@12V
Ingress Protection	IP65
Main material	ASA+engineering plastics
Mounting frame	1.5m, 3m Pole, 1.8m tripod

MODBUS RTU COMMUNICATION PROTOCOL

CRC instruction：

Among all the following instructions, the two bytes of CRC16 in MODBUS RTU protocol are as follows: the low byte comes before the high byte comes after.

In the following instructions, the sensor address 0xFF is assumed

(the sensor default address is FF)

Return error code rule：

When receive error instruction (including CRC16 validation error), the sensor will not return error code. After the instruction is issued 100ms, it fails to receive issuing instruction The upper computer may consider failure and may resend the instruction.

Standard MODBUS register specification

Note: The quantity or length of register in Modbus is two bytes and 16 bits(the high byte comes first and the low byte comes last), Non - byte 8 bits are a unit.

The user shall ensure that the range of the address and the range of quantity of registers are within the system range.If it exceeded, the output of the sensor will be unpredictable. The user shall ensure that the MODBUS meets the requirements of this manual in the software design of the upper computer

communication examples

Here is an example of using Modbus RTU command to access system registers

1.Read multiple input registers (5 live data) commands

Send：FF 03 00 09 00 05 40 15

FF	03	00 09	00 05	40 15
System address	function code	Register address	Register number	CRC16check bit generatedautomaticallybysoftware

Send：FF 03 00 09 00 05 40 15

FF	03	0A	1A 57 0C 5F 27 83 00 11 00 14	30 1C
System address	function code	Number of bytes of data segment	Data segment data	CRC16check bit

parse data：

0x1A57= 0x1A * 256 + 0x57= 6743 Temperature = 6743/100-40=27.43℃

0x0C5F= 0x0C * 256 + 0x5F= 3167 Humidity=3167/100=31.67%RH

0x2783= 0x27 * 256 + 0x83= 10115 atmospheric pressure=10115/10=1011.5hPa

0x0011=17Wind speed=17/100=0.17m/s

0x0C14=0x0C * 256 + 0x14= 3092 Wind direction=3092/10=309.2°

-----------------------------------------------------------------------------------------------------

2.Read the single input register command

Send：FF 03 00 01 00 01 C0 14

FF	03	0001	0001	C0 14
Systemaddress	functioncode	Register address	Register address	CRC16 check bit generated automatically by software

Answer：FF 03 02 02 1C 91 39

FF	03	02	02 1C	91 39
Systemaddress	functioncode	Number of bytes of data segment	Data segment data	CRC16 check bit

parse data：0x021C= 0x02 * 256 + 0x1C= 540 Noise = 540/10=54.0dB

-----------------------------------------------------------------------------------------------------

3.Read the address register command

Send：00 03 00 00 00 01 85 DB

00	03	00 00	00 01	85 DB
	function code	Register address	Register address	CRC16 check bit generated automatically by software

Answer：00 03 02 00 01 44 44

00	03	02	00 01	44 44
	function code	Number of bytes of data segment	Data segment data	CRC16 check bit

Data segment data0x0001 =01 system address 01

-----------------------------------------------------------------------------------------------------

4、Modify internal register（System address）Command（Modify address to 0x33）

Send：00 06 00 00 00 33 C8 0E

00	06	00 00	00 33	C8 0E
	function code	Register address	New address	CRC16 check bit

Answer：00 06 00 00 00 33 C8 0E （Indicates successful modification）

00	06	00 00	00 33	C8 0E
	function code	Start address	New address	CRC16 check bit

-----------------------------------------------------------------------------------------------------

5、Read the electronic compass (output value is the Angle between compass north and sensor north arrow)

Send：FF 03 01 05 00 01 80 29

FF	03	01 05	00 01	80 29
Station number	function code	Register address	Register number	CRC16 check bit

Answer：FF 03 02 00 36 11 86

FF	03	02	00 36	11 86
Station number	function code	Number of bytes of data segmen	Data segment data	CRC16 check bit

The latitude data segment data is 0x0036 =54, which means the arrow points to 54°at this time

Input register: read with function code 03

Address	operation	Contents	Notes
0x0001	read-only	Noise, hexadecimal number amplified by 10 times
0x0002	read-only	Hydrogen sulfide
0x0003	read-only	SO2 concentration,hexadecimal ,such as 0x0172, indicates that SO2 concentration is 370ppb.
0x0004	read-only	NO2 concentration,hexadecimal ,such as 0x0036, indicates that NO2 concentration is 54ppb
0x0005	read-only	CO concentration,hexadecimal ,such as 0x0A00, indicates that CO concentration is 2560ppb
0x0006	read-only	O3 concentration,hexadecimal ,such as 0x0123, indicates that O3 concentration is 2560ppb
0x0007	read-only	PM2.5 concentration,hexadecimal ,such as 0x0172, indicates that PM2.5 concentration is 370ug/m³
0x0008	read-only	PM10 concentration,hexadecimal ,such as 0x0193, indicates that PM10 concentration is 403ug/m³
0x0009	read-only	Atmospheric temperature, Hexadecimal number plus 40 then it is magnified as 100 times, such as 0x1B00 indicates 6912/100-40=29.12℃
0x000A	read-only	Atmospheric humidity, Hexadecimal number is magnified as 100 times, such as 0x1603 indicates 5635/100=56.35%
0x000B	read-only	Atmospheric pressure, Hexadecimal number is magnified as 10 times, such as 0x2784 indicates 10116/10=1011.6hPa
0x000C	read-only	Wind speed, Hexadecimal number is magnified as 100 times, such as 0x0125 indicates 293/100=2.93m/s
0x000D	read-only	Wind direction, Hexadecimal number is magnified as 10 times, such as 0x0C14 indicates 3092/10=309.2°	North is 0 °
0x000E	read-only	Rainfall in 10 minutes, magnified 10 times of hexadecimal number, such as 0x0016 means 2.2mm	The default is 10 minutes of rain
0x000F	read-only	solar radiation, Hexadecimal number, such as 0x0172 indicates 370W/㎡
0x0010	read-only	illumination, Hexadecimal number is magnified as 100 times, such as 0x0123 indicates 2.91.Klux
0x0011	read-only	UV index
0x0012	read-only	CO2, Hexadecimal number, such as 0x01F4 indicates 500ppm
0x0013 -0x001f	read-only	Negative oxygen ions, reduced by 10 times the hexadecimal number, such as 0x01F4 means that the number of negative oxygen ions is 5000
0x0014 -0x001f	read-only	Keep
0x0020	read-only	Electronic compass, hexadecimal number, such as 0x0036 means it is currently pointing to 54°	North is 0
0x0021	read-only	Pitch angle 1
0x0022	read-only	Pitch angle 2
0x0023	read-only	Pitch angle 3
0x0024	read-only	longitude
0x0025	read-only	latitude
