CA-VPT-01
CASOLED
1. High-definition camera, active real-time monitoring with the video intercom system;
2. Full duplex voice intercom, no echo howling;
3. Built-in high sensitivity microphone, 5 meters long-distance intercom;
4. Adopting a dynamic noise reduction algorithm, it can pick up sound clearly in high-noise environments;
5. Advanced digital echo cancellation technology can completely eliminate the echo and prevent howling;
6. The design of the surrounding waterproof groove is integrated, and it is weatherproof outdoors;
7. This ring video intercom design of lightning protection and automatic power supply recovery device;
8. The Waterproof metal button is always on, it can be clearly seen outdoors and at night, and it has 100,000 service lives, which can resist impact and shock.

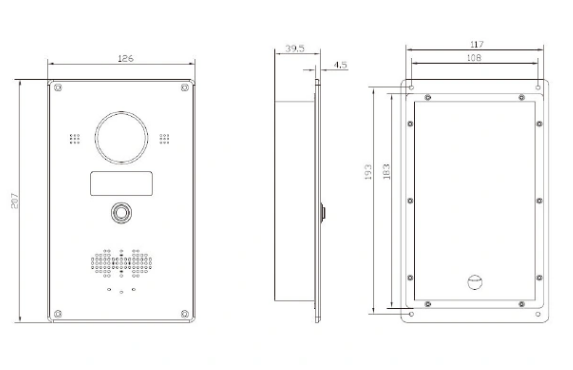

| Dimensions | Power supply | Power consumption | Network interface | Protocol supported | Network communication rate |
| 207*126*39.5 mm | 12v 2A | ≤ 8W | standard RJ45 | TCP/IP DHCP | 10/100Mbps |
| Audio format | Audio sampling rate | Audio code stream | 16bit. Code rate | Audio coding | Signal to noise ratio |
| MP3/WAV | 8k ~ 48 khz | 22.050KHz～44.1KHz | 16kbps-4000kbps | G.711, G.713 PCM | ＞70dB |
| Built-in speaker | Built-in MIC | Keys | Camera | Video resolution | Lighting compensation |
| 4 Euro 3W | -50dB | high-strength metal anti-damage key | 720P COMS digital camera | 720P | full-automatic night lamp compensation |
| Button | Video saving forma | Working temperature | Protection grade | Interface | |
| high-strength metal anti-damage button | MP4 | -30℃~+70℃ | IP65 | power input, 1 audio output, 3 short-circuit inputs, 2 output interfaces, 1 RJ45. | |
1 . All-digital audio-video intercom, using TCP/IP network transmission technology, compresses audio-video signals and transmits them in LAN/WAN in the form of data packets to realize pure digital bidirectional audio transmission or single bidirectional audio-video transmission.
2 . The integrated system scheme configuration consists of system server software, multi-screen soft ware, telephone agent software and integrated IP network intercom terminal.
3 . Multi-level management structure: The system has a multi-level management structure, which can unify the networking of multiple duty rooms at different levels; The system can be accessed by the other party with Ethernet, which supports cross-network segment and cross-routing, and can be connected to the Internet.
4 . Support high-definition image resolution up to 1280*720, and adapt to the network bit stream technology.
5 . Support 1500 terminals;
6 . Digital audio and video recording: The server software records and videos the call process, and can record the call and call time.
7 . Unlocking function: The system supports two electric locks for each terminal.
8 . Broadcasting function: The seating software can broadcast and shout to its intercom terminals in the whole area, and the monitoring center can remotely patrol all monitoring outlets in the city. When suspicious signs are found, it can remotely shout to criminals, and at the same time, it can remotely turn on auxiliary equipment such as a police whistle to deter criminals;
9 . Monitoring: It can monitor the field situation around the intercom terminal; When monitoring, the intercom terminal can be unaware.
10. Remote automatic upgrade: the firmware of the equipment can be automatically upgraded through the system software.
11. Linkage control: TCP instruction, UDP instruction, RS485 interface and switch interface are provided.
12. Support alarm map display; When calling any alarm help point, the local voice prompts and flashes on the map.
13. Support graded and divided authority management;
14. Multiple telephone agents, supporting queuing system and telephone agent software: mainly capable of answering, calling, monitoring, unlocking, controlling input and output devices, etc.
15. Multi-screen software: automatically displays all the alarm points that have not been answered, and automatically record and video at the same time. The monitoring center supports alarm multi-screen output;
