Model:
CA-CG-01
Brand:
CASOLED

Product Description

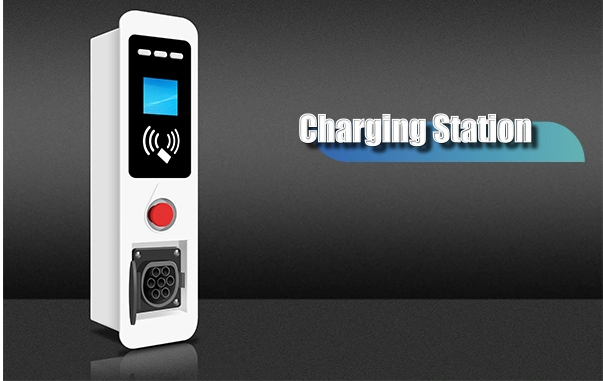

微信图片_20250316102905

Charging Station

Smart Pole Charging Station (referred to as: Charging Station) are new products designed according to customer needs. This product has the characteristics of small size, light weight, high charging efficiency, small area, and atmospheric fashion.

The design of street light piles has various perfect protection, including AC leakage protection, lightning protection protection, charging current over flow police and protection, overvoltage of charging voltage, protection of underwriting, emergency power outage protection, etc.

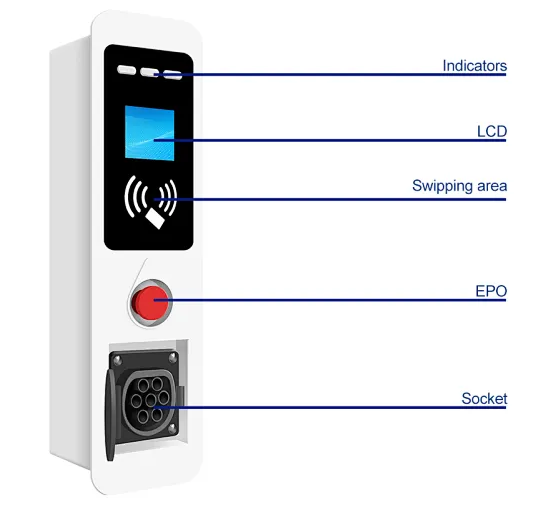

微信图片_20250316100743

Technical Parameters

Electrical parameter	Rating input voltage	AC220V±20%
	Maximum power	7KW
	Rated working current	32A
	Input frequency	50Hz±1Hz
	Rating output voltage	AC220V±20%
	Rating output current	32A
	Standby power consumption	<6W
Environmental indicators	Applicable scene	Indoor/outdoor
	Operating temperature	-30℃~+55℃
	Working humidity	5%~95%
	Work altitude	<2000m
	Protection level	IP54
	Cooling method	Natural cooling
	Security certification	GBT 20234、NBT 33008、NBT 33002
	MTBF	100,000H

Features of Product

1. Designed to provide AC power to electric vehicles with on-board chargers.

2.mainly used in intelligent street lamps in smart cities, as an important configurationfunction of intelligent street lamps.

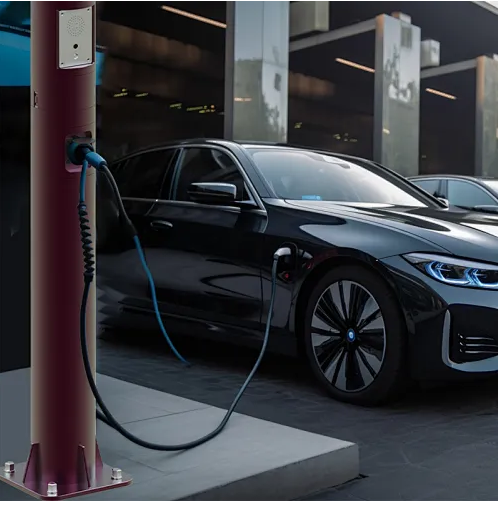

3. Directly embedded in the street lamp post and doesn't take up additional space.

4. According to the latest standard requirements, it can meet the requirements of allelectric vehicles in line with the standard charging.

Features of Product

1.Safety and stability: Wall -mounted AC charging piles provide reliable electrical safety protection functions, which can prevent theft, dustproof, and waterproof.
2.Stable operation can ensure long -term reliable operation. The protection level meets the outdoor IP54 level;
3.System integration: The functions required for the entire charging pile, such as charging function, human machine operation, security protection, and functions have been highly integrated.
4. Simple and easy to use: human -machine interface is friendly, simple and clear, and easy to operate;
5.Small area and convenient installation: the area and space occupied by the entire charging pile are very reasonable, improve the spatial utilization rate, and it is convenient for installation and application in a tight land use area;
6.Connection abnormal: can determine whether the charging joint has been connected correctly. After the correct connection is correct, the charging interface can output the power supply. When the charging connector is abnormally disconnected, the exchange charging pile immediately stops the output to ensure personal safety and charging safety;
7.Multiple protection: The charging pile has the function of output overput, under pressure, and overload protection. When the charging voltage exceeds over voltage protection or lower than the low -voltage protection fixed value, the charging pile stops charging to protect the charging equipment. When the charging current exceeds the load current fixed value, the delay 5s issue a warning signal and automatically cut off the charging power;
8.The charging pile has a short -circuit and leakage protection function;
9.Controller three -proof (anti -humid, mildew -proof, salt -proof fog) protection and rust protection: circuits such as printing line boards, connecting plug -ins, etc. The piles can run normally in an outdoor humid and salt -containing environment. The charging pile shell and the exposed iron brackets and parts are used for double -layer rust -proof measures. The non -iron metal shell also has anti -oxidized protective film or for anti -oxidation treatment;
10. Beautiful appearance: The overall appearance design is simple and generous, and the theme mask can be customized. The style is colorful;
11.According to special requirements, it can be compatible with new and old standard electric vehicles.
