TP-LINK Outdoor AP WiFi

Production Introduction:

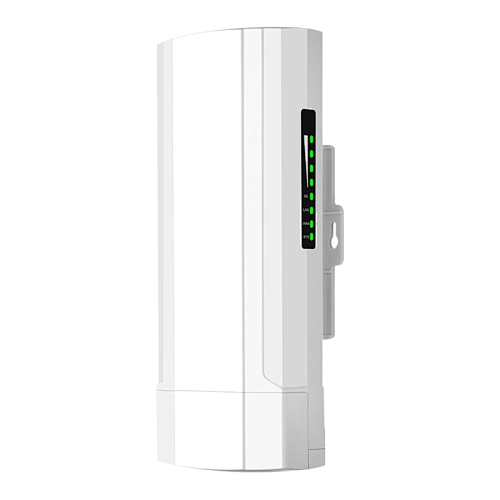

The ultimate solution for outdoor long-distance wireless connectivity. Engineered for reliability and performance, this model boasts a robust Qualcomm chip Atheros9531, ensuring seamless operation even in demanding environments. Equipped with a built-in 14DBI high-gain omnidirectional antenna, it pushes the boundaries of connectivity, achieving an impressive range of up to 2000 meters. Designed to accommodate up to 64 users simultaneously, with a capacity of 40+ users at any given time, the HX-CPE830 is tailored for small to medium-sized deployments. Whether you're enhancing connectivity in parks, squares, scenic spots, or rural areas, its reliable performance ensures seamless access for all users. HX-CPE830 model is a 300Mbps outdoor long-distance wireless AP/CPE. It uses a high-performance operation-level Qualcomm chip Atheros9531 and a built-in 14DBI high-gain omnidirectional antenna so that the receiving and launch distance can reach 2000 meters. This product supports bridge connection and wireless WAN function, which can realize long-distance wireless access to the Internet. In addition, it also supports the Internet access method to dial POE; static IP, and DHCP functions are suitable for wireless networks and wireless coverage. The HX-CPE830 uses a dustproof waterproof shell, which can work in various outdoor environments. It also supports POE power supply and remote reset functions to facilitate management. With the HX-CPE830, stay connected, stay efficient, and elevate your outdoor wireless experience to new heights.

Support 64 user access, 40+users at the same time to meet WiFi coverage of small-medium sized squares/parks/scenic spots/villages
Designed for outdoor wireless transmission, the transmission distance is ≥2km
Remote management through the cloud platform is convenient for engineering maintenance and management and reduces the cost of material resources

Hardware Configuration
Model	HX-CPE830
Main chip	Qualcomm QCA9531
Memory	64MB DDR2 RAM
Flash	16MB

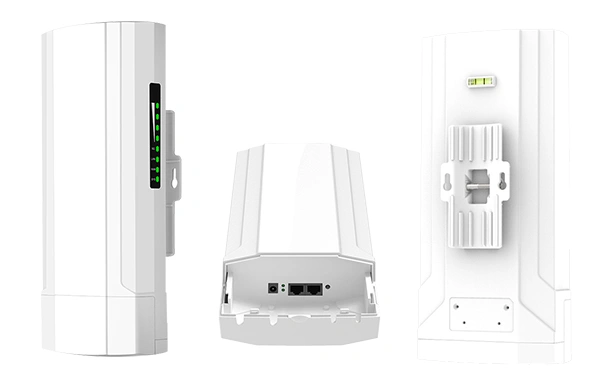

Device interface	2 10/100 Mbps adaptive wired network interface 1 reset button, restore the default settings and use 1 DC power interface, support 12V DC local power supply power supply
Antenna	Antenna gain: 2*14dbi omnidirectional antenna
Power Adapter	24V POE DV 12V
Power consumption	<10W
LED light	1 POWER light; a WIFI light; a WAN portal; 1 LAN portal Four signal strength lights: DS1, DS2, DS3, DS4
Host size	2578738mm (longwidthheight)

Software Characteristics
Operating mode	Client mode/AP mode
Communication standard	IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.11b/g/n (2.4G WLAN)
Wireless setting	Intelligent channel analysis Distance control 802.1xACK time output VAP (virtual AP), up to 4 configuration ssid
Wireless safety	WeP security mechanism supports 64/128/152 -bit weP security password WPA/WPA2 security mechanism (WPA-PSK use TKIP or AES) WPA/WPA2 security mechanism (WPA-EAP use TKIP) Hidden SSID security mechanism
System settings	Web configuration (HTTP/remote login)
software upgrade	Web webpage or TFTP to upgrade software
User Management	Available users and passwords
System monitoring	Equipment and network statistics
Log	Provide local logs, host logs, file transmission logs
Recovery settings	Can restore the default settings
Backup function	The configuration of the backup system, restoring the user configuration when needed
Use environment	Work temperature: -40 ℃ ~+55 ℃ Storage temperature: -40 ℃ ~+70 ℃ Work humidity: 5%~ 95%RH does not condense Storage humidity: 5%~ 95%RH does not condense

Radio Frequency Characteristics
Transmission rate	300Mbps
Modulation	OFDM = BPSK, QPSK, 16-QAM, 64-QAM DSSS = dbpsk, DQPSK, CCK
Radiofrequency characteristics	802.11b/g/n 2.412GHz-2.484GHz South Korea, Japan, ETSI, FCC communication channel optional
Receiving sensitivity	802.11n(2.4GHz)	802.11g	802.11b
	-90dBm @ MCS0	- 90dBm @ 6Mbps	- 95dBm @ 1Mbps
	-72dBm @ MCS7	- 72dBm @ 54Mbps	- 90dBm @ 11Mbps
	-90dBm @ MCS8
	-68dBm @ MCS15
Launch power	802.11n(2.4GHz)(±1.5dBm)	802.11g(±1.5dBm)	802.11b(±1.5dBm)
	28dBm@ MCS0~2/MCS8~10	28dBm @ 6~24Mbps	28dBm @1~11Mbps
	28dBm@MCS3/MCS11	27dBm @ 36Mbps
	27dBm@MCS4/MCS12	27dBm @ 48Mbps
	27dBm@MCS5/MCS13	26dBm @ 54Mbps
	26dBm@MCS6/MCS14
	26dBm@MCS7/MCS15
